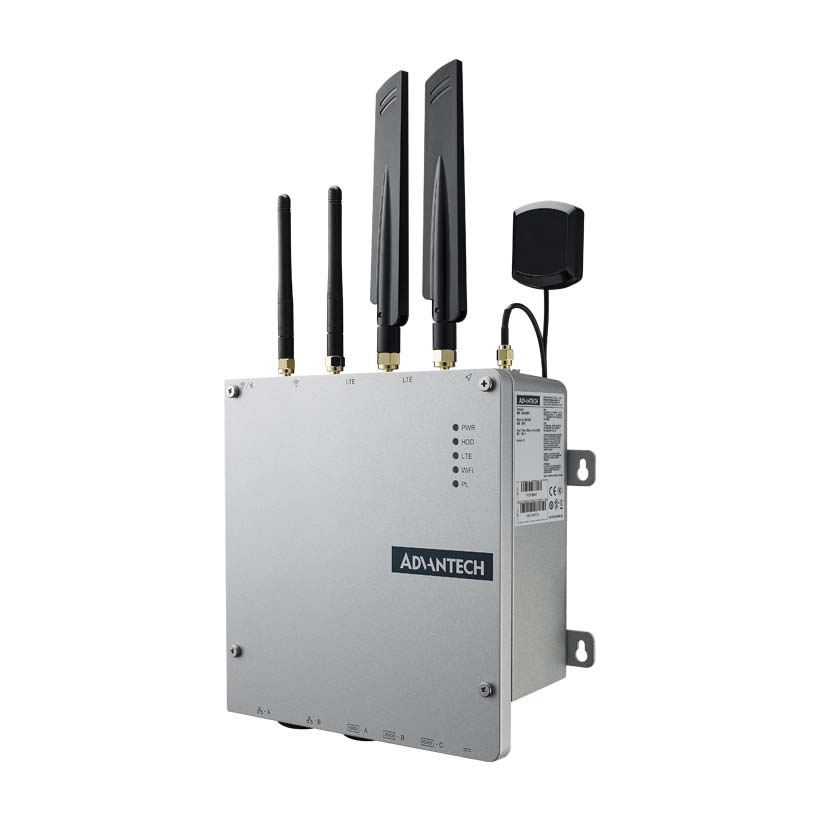

Advantech UNO-430-E1A All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway (Intel® ATOM E3950 1.6GHz Quad-Core)

Ingress Protection: All-around IP69K/68

Operating Temperature: -40~70 °C (-40~158 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration Protection: 2 Grms, random

Certification: CB, UL, CE, FCC Class A

CPU: Intel® ATOM E3950 1.6GHz Quad-Core

Graphics Engine: Intel® HD Graphics

Hardware Security: TPM 2.0

Memory: 1 x SO-DIMM with 8 GB DDR3L 1600 MHz

OS Support: Microsoft® Windows 10 2019 LTSC, Linux

Power Input: 10~36 VDC

Storage: 1 x M.2 B key

Displays: 1 x DP

Expansion: 1 x M.2 B key, 1 x M.2 E key

LAN Ports: 2 x 10/100/1000 Mbps

Power Connector: 1 x 3-Pin Terminal Block

Serial Ports: 2 x RS-232/422/485, 1 x RS-232 (Console)

USB Ports: 2 x Internal USB

Cable Gland: 2 x M32 cable gland for Ethernet cable (cable size range OD 5 ~ 6.6 mm/0.19 ~ 0.25 in) 4 x M12 cable gland for serial port and power cable (cable size range OD 4.5 ~ 6.5 mm/0.17 ~ 0.25 in)

Dimension (W x H x D): 200 x 68 x 200 mm

Enclosure: Aluminum housing

Weight (Net): 3 kg
