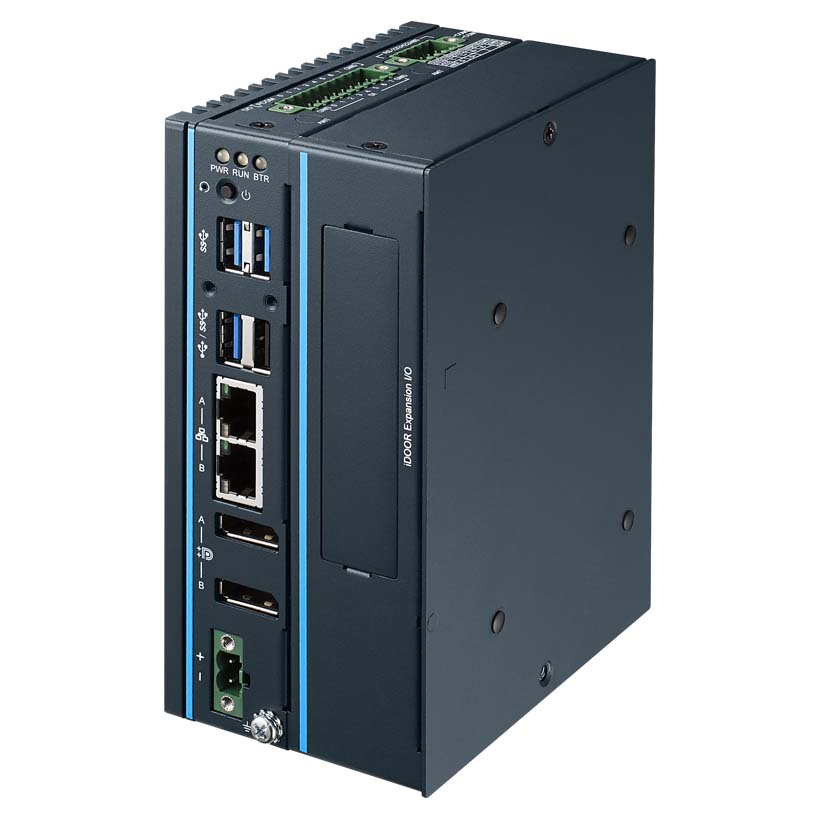

Advantech UNO-410-E1H Industrial-grade automation computer (Intel® Atom® E3940 1.60GHz Quad-Core)

Certificate: UL, CE, FCC, CCC, C1D2

CPU: Intel® Atom® E3940 1.60GHz Quad-Core

Graphics Engine: Intel® HD Graphics

Memory: 1 x SO-DIMM with 8 GB DDR3L 1600 MHz

OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input: 10~36 VDC

Storage: 1 x 2.5 inch SSD/HDD bay, 1 x M.2 B key

Display: 2 x DP

Expansion: 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot

LAN: 2 x 10/100/1000 Mbps

Power connector: 1 x 2-Pin Terminal Block

Serial Port: 2 x RS-232/422/485

USB port: 3 x USB 3.2, 1 x USB 2.0

Ingress Protection: IP40

Operating Temperature: -40~55 °C (-40~131 °F)

Relative Humidity: 95% RH (non-condensing)

Shock: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration: 4 Grms, random

Dimension (W x H x D): 70 x 105 x 150 mm

Enclosure: Aluminum housing

Weight: 1 kg (2.2 lb)

General Digital I/O: 8-ch DI, 8-ch DO
