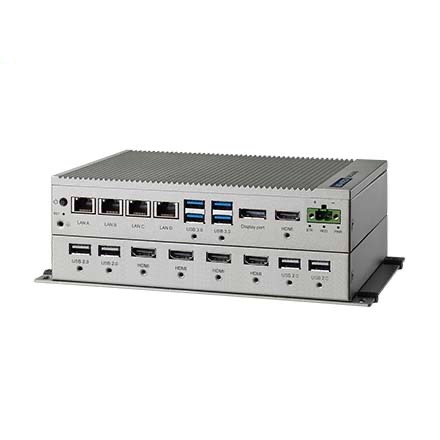

Advantech UNO-2484G-6331BE Modular Compact Embedded Box PC (6th Gen. Intel® Core™ i3-6100U 2.30GHz Dual-Core)

Ingress Protection: IP40

Operating Temperature: -20~60 °C (-4~140 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration Protection: 3 Grms, random

Certification: CE, FCC, UL, CCC, BSMI

Memory: 1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz

OS Support: Microsoft® Windows 10 LTSC, Linux

Power Input: 10~36 VDC

Storage: 2 x 2.5\

CPU: 6th Gen. Intel® Core™ i3-6100U 2.30GHz Dual-Core

Audio: Line-Out

Displays: 1 x HDMI, 1 x DP

LAN Ports: 4 x 10/100/1000 Mbps

Power Connector: 1 x 2-Pin Terminal Block

Serial Ports: 4 x RS-232/422/485

USB Ports: 4 x USB 3.0

Dimension (W x H x D): 200 x 140 x 50 mm

Enclosure: Aluminum housing

Weight (Net): 1.4 kg ( 3.09 lb)
