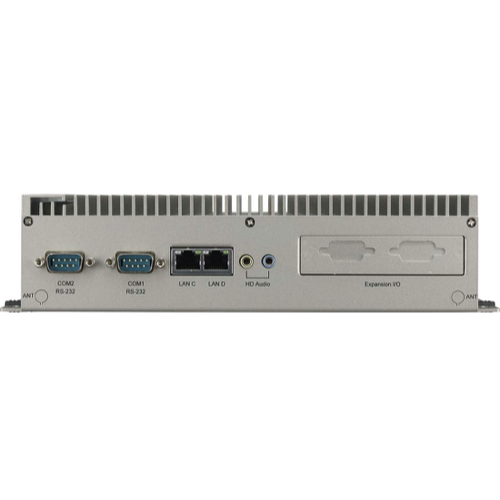

Advantech UNO-2473G-E3AE Industrial Automation PC with Intel® Atom™ E3845 (Intel® Celeron E3845 1.91 GHz Quad-Core)

Ingress Protection: IP40

Operating Temperature: -20~60 °C (-4~140 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration Protection: 2 Grms, random

Certification: CE, FCC, UL, CCC, BSMI

CPU: Intel® Celeron E3845 1.91 GHz Quad-Core

Graphics Engine: Intel® HD Graphics Gen7 with 4EU

Memory: 1 x SO-DIMM Memory with 4 GB DDR3L 1600 MHz

OS Support: Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, WEC7, Linux

Power Input: 24 VDC ±20%

Storage: 1 x mSATA, 1 x 2.5\" SSD/HDD bay

Audio: Line-In, Line-Out

Displays: 1 x HDMI, 1 x VGA

Expansion: 3 x Full-size mPCIe Slot

LAN Ports: 4 x 10/100/1000 Mbps

Power Connector: 1 x 3-Pin Terminal Block

Serial Ports: 2 x RS-232, 2 x RS-422/485

USB Ports: 3 x USB 2.0, 1 x USB 3.0

Dimension (W x H x D): 252 x 149 x 62 mm

Enclosure: Aluminum housing

Weight (Net): 1.6 Kg (3.5 lb)
