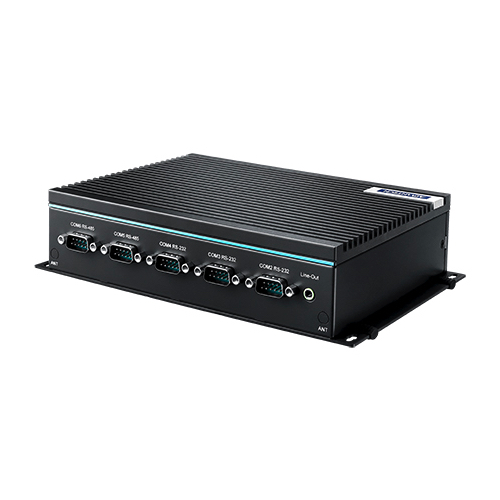

Advantech UNO-247-J121W10 Compact Industrial Computer with Intel Celeron J3455 (Intel® Celeron® J3455 1.5GHz)

Ingress Protection: IP40

Operating Temperature: -20~60 °C (-4~140 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Vibration Protection: 3 Grms, random

Certification: CB, UL, CE, FCC, CCC, BSMI

CPU: Intel® Celeron® J3455 1.5GHz

Graphics Engine: Intel® HD Graphics

Memory: 1 x DDR3L SO-DIMM Slot

OS Support: Microsoft® Windows 10 2019 LTSC, Linux

Power Input: 12 VDC

Storage: 1 x mSATA slot, 1 x 2.5 inch 64 GB SSD

BIOS: AMI EFI 64 Mbit Flash BIOS

Ethernet: Realtek® RTL8111G-CG GbE

LED Indicators: PWR

Power Consumption: 17 W @ 12 VDC

Watchdog Timer: 1~255 s

Audio: Line-Out

Displays: 1 x HDMI, 1 x VGA

Expansion: 1 x Full-size mPCIe Slot, 1 x M.2 E key 2230, 1 x Micro SIM Card Slot

LAN Ports: 2 x 10/100/1000 Mbps

Power Connector: 1 x DC Jack

Serial Ports: 4 x RS-232, 2 x RS-485

USB Ports: 2 x USB 3.0, 2 x USB 2.0

Dimension (W x H x D): 200 x 140 x 50 mm

Enclosure: Aluminum housing

Weight (Net): 1.0 kg (2.2 lb)

Mounting: Stand, Din-rail
