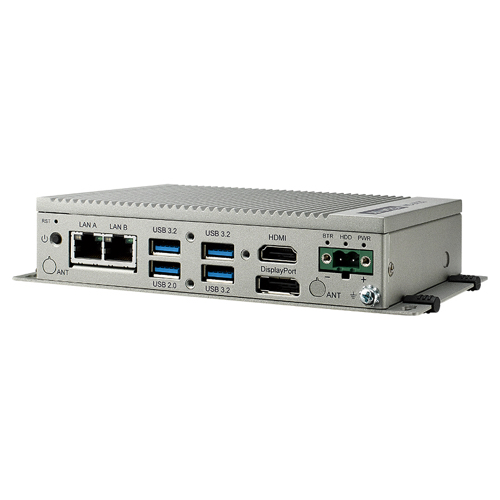

Advantech UNO-2372G-J231AE Small-size Modular Embedded Box PC (Intel Celeron J6412 2.00 GHz, Quad core)

CPU: Intel Celeron J6412 2.00 GHz, Quad core

Memory: 1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz

Graphics: Intel UHD Graphics

OS: Microsoft Windows 10 2019 LTSC, Linux

Display: 1 x HDMI, 1 x DP

LAN: 2 x 10/100/1000 Mbps

Storage: 1 x 2,5 inch SSD/HDD bay

BIOS: AMI EFI 64 Mbit

Power Input: 10~36 VDC

Enclosure: Aluminum housing

Audio: Line-Out

Watchdog Timer: 1~255 s

Operating temperature: -20~60 °C (-4~140 °F)

Serial port: 4 x RS-232/422/485 (DB9)

USB port: 3 x USB 3.2, 1 x USB 2.0

LAN port: 2 x 10/100/1000 Mbps

Power Connector: 1 x 2-Pin Terminal Block

Dimension (W x H x D):: 150 x 105 x 35 mm(Single-stack) ; 150 x 105 x 65 mm(Double-stack)

Weight: 0.8 kg (1.76 lb)

Certification: CE, FCC, UL, CCC, BSMI
