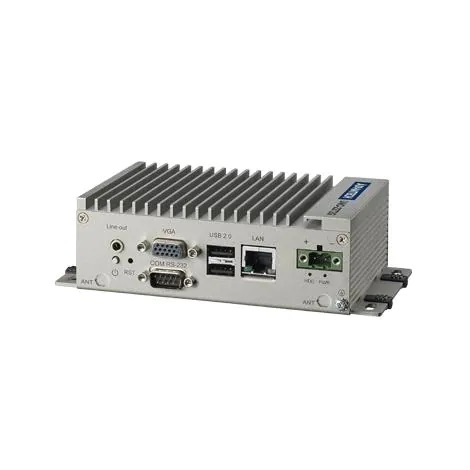

Advantech UNO-2272G-J2AE Palm-Size Automation Computer (Intel® Celeron J1900 2.0 Ghz Quad-Core)

Ingress Protection: IP40

Operating Temperature: -10~55 °C (14~131 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration Protection: 2 Grms, random

Certification: CE, FCC, UL, CCC, BSMI

CPU: Intel® Celeron J1900 2.0 Ghz Quad-Core

Graphics Engine: Intel® HD Graphics

Memory: 1 x SO-DIMM with 2 GB DDR3L 1333 MHz

OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input: 24 VDC ±20%

Storage: 1 x half-size mSATA

Audio: Line-Out

Displays: 1 x HDMI

Expansion: 2 x Full-size mPCIe Slot

LAN Ports: 1 x 10/100/1000 Mbps

Power Connector: 1 x 2-Pin Terminal Block

Serial Ports: 1 x RS-232/422/485

USB Ports: 2 x USB 2.0, 1 x USB 3.0

Dimension (W x H x D): 157 x 88 x 50 mm

Enclosure: Aluminum housing

Weight (Net): 0.8 kg (1.7 lb)
