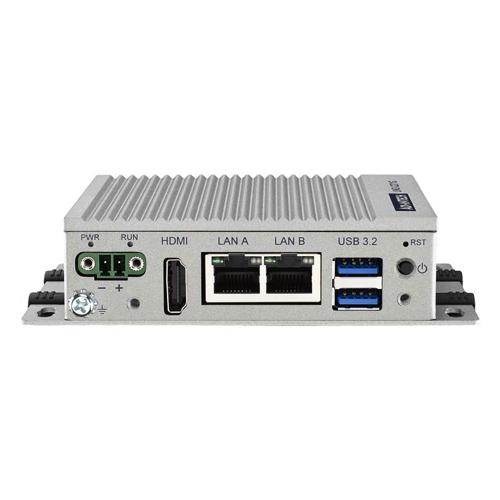

Advantech UNO-2271G-N221AU Industrial PCs (Intel® Celeron® N6210 1.2GHz Dual-Core)

Ingress Protection: IP30

Operating Temperature: -20~60 °C (-4~140 °F)

Relative Humidity: 10~95% RH (non-condensing)

Shock Protection: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration Protection: 2 Grms, random

Certification: CE, FCC, UL, CCC, BSMI

CPU: Intel® Celeron® N6210 1.2GHz Dual-Core

Graphics Engine: Intel® UHD Graphic 620

Memory: 1 x DDR4 with 4 GB

OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Power Input: 10~30 VDC

Storage: 32 GB eMMC, 1 x mSATA (shared with mPCIe)

Displays: 1 x HDMI

Expansion: 1 x Full-size mPCIe Slot

LAN Ports: 2 x 10/100/1000 Mbps

Power Connector: 1 x 2-Pin Terminal Block

USB Ports: 2 x USB 3.2

Dimension (W x H x D): 100 x 70 x 30 mm

Enclosure: Aluminum housing

Weight (Net): 0.5 kg (1.1 lb)
