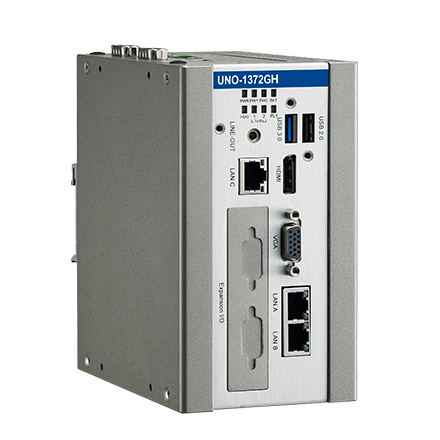

Advantech UNO-1372GH Embedded Box Computers (Intel® Atom® E3845 1.91GHz Quad-Core)

Certification: CB, UL, CE, FCC, CCC, BSMI, C1D2

CPU: Intel® Atom® E3845 1.91GHz Quad-Core

Graphics Engine: Intel® HD Graphics

Memory: 1 x SO-DIMM with 4 GB DDR3L 1333 MHz

OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input: 9~36 VDC

Storage: 1 x mSATA (shared with mPCIe), 1 x 2.5\" SSD/HDD bay

Display: 1 x VGA, 1 x HDMI

Expansion: 2 x Full-size mPCIe Slot

LAN: 3 x 10/100/1000 Mbps

Power Connection: 1 x 4-Pin Terminal Block

Serial Port: 1 x RS-232, 1 x RS-422/485

USB port: 1 x USB 3.0, 2 x USB 2.0

General Digital I/O: 4-ch DI, 4-ch DO

Ingress Protection: IP40

Operating Temp.: -20~60 °C (-4~140 °F)

Humidity: 95% RH (non-condensing)

Shock: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration: 5 Grms, random

Dimension (W x H x D): 85 x 139 x 152 mm

Enclosure: Aluminum housing

Weight (net): 1.6 Kg (3.5 lb)

Datasheet
