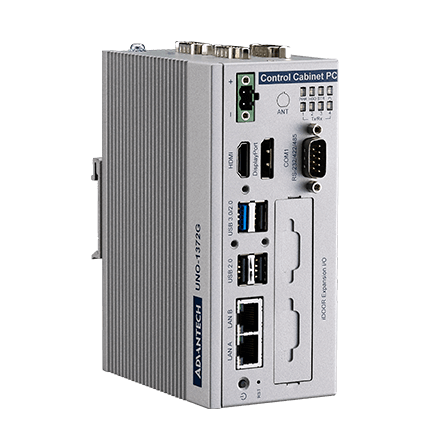

Advantech UNO-1372G-J Embedded Box Computers (Intel® Celeron® J1900 2.0 GHz Quad-Core)

Certification: CB, UL, CE, FCC, CCC, BSMI

CPU: Intel® Celeron® J1900 2.0 GHz Quad-Core

Graphics Engine: Intel® HD Graphics

Hardware Security: TPM 2.0

Memory: 1 x SO-DIMM with 4 GB DDR3L 1600 MHz

OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input: 10~36 VDC

Storage: 1 x mSATA (shared with mPCIe), 1 x 2.5\

Display: 1 x DP, 1 x HDMI

Expansion: 2 x Full-size mPCIe Slot

LAN: 2 x 10/100/1000 Mbps

Power Connection: 1 x 2-Pin Terminal Block

Serial Port: 4 x RS-232/422/485

USB port: 1 x USB 3.0, 3 x USB 2.0

General Digital I/O: 4-ch DI, 4-ch DO

Ingress Protection: IP40

Operating Temp.: -20~60 °C (-4~140 °F)

Humidity: 95% RH (non-condensing)

Shock: 50 G, half sine

Storage Temperature: -40~85 °C (-40~185 °F)

Vibration: 1 Grms, random

Dimension (W x H x D): 65 x 105 x 150 mm

Enclosure: Aluminum housing

Mounting: DIN-rail

Weight (net): 1kg (2.2 lb)

Datasheet
