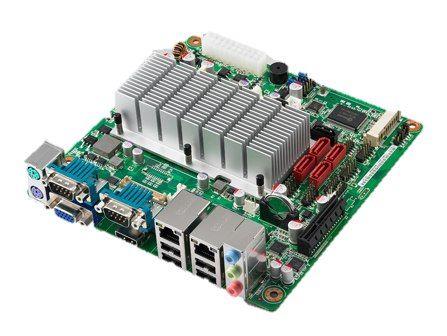

Advantech SIMB-M22-2G2S0A1E Single Board Computers AMD T40R MINI-ITX, VGA/LVDS/HDMI/4GbE/

Core: APU T40R

Chipsets: A55E

Frequency: 1 GHz

Dimensions: 170 mm x 170 mm

Form Factor: Mini-ITX

Memory Type: DDR3

Unit Weight: 549.435 g

Cache Memory: 512 kB

Installed RAM: 0 GB

Interface Type: Audio, eDP, Ethernet, HDMI, LVDS, mPCIe, PCIe, VGA

Processor Type: APU T40R

Number of Cores: 1 Core

Processor Brand: AMD

Processor Series: AMD Fusion T40R

Description/Function: AMD mobile G-series single core Mini-ITX with VGA/LVDS/HDMI, 4 COM and dual LAN

Maximum RAM Capacity: 4 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
