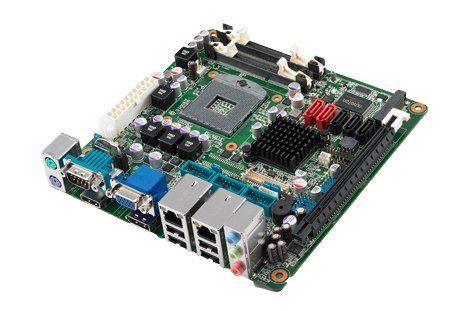

Advantech SIMB-M21-7G200A1E Single Board Computers CIRCUIT MODULE, HM65 MINI-ITX, VGA/HDMI/LVDS/DP, 4 COM, 2GbE

Core: Celeron, Core i3/i5/i7

Chipsets: HM65

Frequency: 2.5 GHz

Dimensions: 170 mm x 170 mm

Form Factor: Mini-ITX

Memory Type: DDR3

Cache Memory: 6 MB

Installed RAM: 0 GB

Processor Type: Celeron, Core i3/i5/i7

Number of Cores: 2, 4 Core

Processor Brand: Intel

Processor Series: Intel Core i3/i5/i7/Celeron

Description/Function: Intel rPGA988 socket supports mobile Intel Core i7/ i5/ i3/ Celeron processor

Maximum RAM Capacity: 16 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
