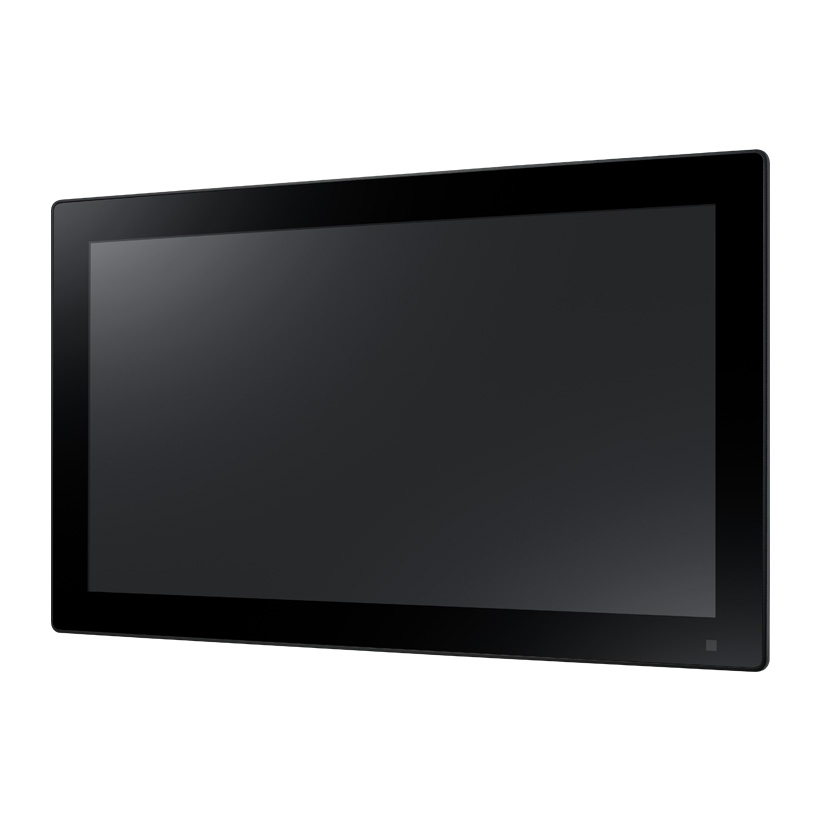

Advantech PPC-321SW ADL_N Fanless Widescreen Panel PC with Intel N97 Quad-Core Processor (CPU Intel® Alder lake N N97 quad core; 21.5" FHD TFT LED LCD)

CPU: CPU Intel® Alder lake N N97 quad core

Frequency: Frequency 2.0 GHz upto 3.6GHz with Turbo

Memory: 1 x SODIMM, DDR5 4800MHz, max. 16GB

Storage: 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1); 1 x 2.5

Network (LAN): 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)

I/O: 2 x RS-232/422/485; 3 x USB 3.2, 1 x USB2.0; 1 x DP; 1 x Line out

Expansion: 1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot); 1 x M.2 E Key 2230 (PCIe & USB 2.0); 1 x iDoor (optional); 1 x PCI or PCIe x4 (optional)

Dimensions: 529.6 x 321.3 x 53.4mm (20.9 x 12.6 x 2.1 in)

OS Support: Windows 10 LTSC, Windows 11, Linux, Andriod

Input Voltage: 24VDC ± 20%

Display Type: 21.5" FHD TFT LED LCD

Max. Resolution: 1920 x 1080

Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)

Luminance (cd/m2 ): 250

Backlight Lifetime: 50,000hrs (min.)

Touchscreen: Multi-touch projected capacitive

Controller: USB Interface

Operating Temperature: -10 ~ 50 °C (32 ~ 122 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Front Panel Protection: IP66 compliant
