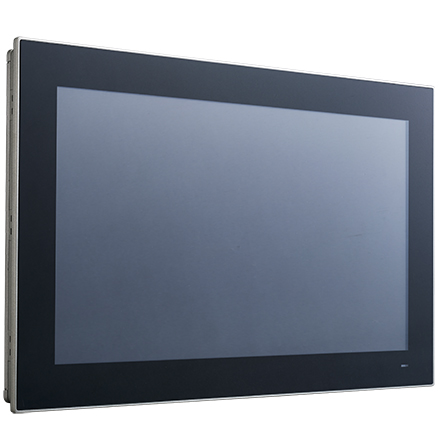

Advantech PPC-3181SW Fanless Panel PC with Intel Core i Processor (LCD TFT 18.5 inch)

CPU: i3-6100U / i5-6300U / i7-6600U

Cores: Dual Core

Frequency: 2.3 GHz/ 2.4 GHz/ 2.6GHz

L3 Cache: 3 / 3 / 4 MB

TDP: 15W

Memory: 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay

Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Realtek 8119i)

I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 2 x USB 3.0, 2 x USB 2.0; 1 x HDMI; 1 x TPM 2.0 internal (optional)

Speaker: 2 x 1W

Expansion: 1 x Full-size mini PCIe slot

Watchdog Timer: 255 timer levels, set up by software

Dimensions: 488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)

Weight: 5.7 kg (12.56 lb)

OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux

Input Voltage: 12 ~ 24 VDC

Power Consumption: 65W

Display Type: 18.5 inch TFT LCD (LED backlight)

Resolution: 1366 x 768

Viewing Angle: 85 (left), 85 (right), 80 (up), 80 (down)

Luminance (cd/m2): 450

Contrast Ratio: 1000

Backlight Lifetime: 50,000 hr (min.)

Touch Type: Multi-touch projected capacitive

Light Transmission: 90 % ± 2%

Controller: USB interface

Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC: CE, FCC Class B, BSMI, UKCA

Safety: CB, UL, CCC, UKCA

Front Panel Protection: IP66 compliant
