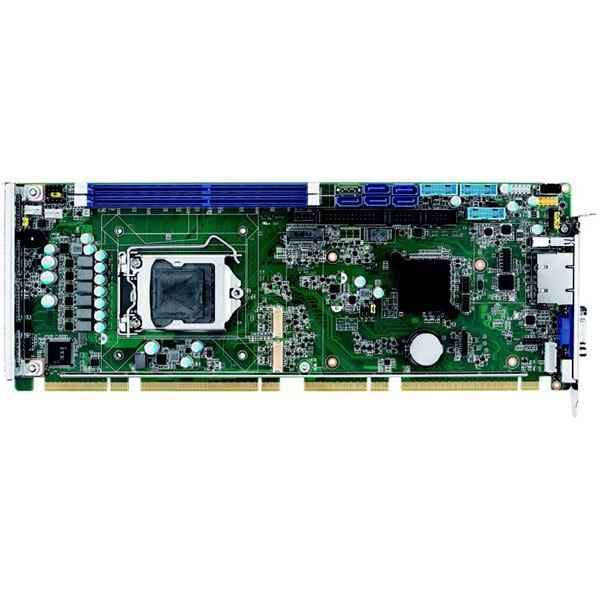

Advantech PCE-5131G2-00A1 PICMG 1.3 Full-size SBC (Intel Q370)

CPU Support: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium

Chipset: Intel Q370

Memory: DDR4 2400, DDR4 2666

Socket Type: 2x DDR4 DIMM 288-pin

Mounting: Removable

Memory Capacity: 64 GB

Graphics Controller: Integrated in CPU

Network Adapter: Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps, 2x Total Ethernet, 2x COM, 2x 10/100/1000 Mbit/s

Interfaces: 2x COM, 2x RS-232, 14x USB, 7x USB 2.0, 7x USB 3.1

Digital Input-Output: 4x Digital In / 4x Digital Out

Expansion: 1 PCI Express x4, 1 PCI Express x16, 4 PCI

Storage Controller: 5x SATA 3 Channels, RAID SATA 3: 0, 1, 5, 10; M.2 SSD (2280 Type M)

Rear Connectors: 2x COM, USB 2.0, USB 3.0, 5x SATA 3, DB15 VGA, PS/2 Keyboard/Mouse, 2x RJ45 Ethernet, 1x USB

Operating Temperature: 0 ... 60 °C

Dimensions: 338 mm L x 122 mm W
