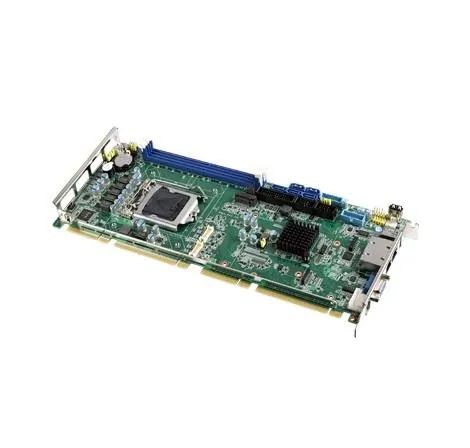

Advantech PCE-5129G2-00A1E PICMG 1.3 Full-size SBC (Intel Q170)

Form Factor: Full Size PICMG 1.3

CPU Support: Intel Core i7-6700, Intel Core i7-6700TE, Intel Core i5-6500, Intel Core i5-6500TE, Intel Core i3-6100, Intel Core i3-6100TE, Intel Xeon E3-1275 v5, Intel Xeon E3-1225 v5, Intel Xeon E3-1268L v5, Intel Pentium G4400TE, Intel Celeron G3900TE

Chipset: Intel Q170

Memory: DDR4 1866, DDR4 2133. 2x DDR4 DIMM 288-pin

Mounting: Removable

Memory Capacity: 32 GB

Graphics Controller: Integrated in CPU

Network Adapter: Intel I211, Intel i219-LM, 2x Ethernet 10/100/1000 Mbit/s (2x RJ-45)

Interfaces: 2x COM, 12x USB, 7x USB 2.0, 5x USB 3.0. LPT (EPP, SPP)

Storage Controller: 5x SATA 3 Channels, RAID SATA 3: 0, 1, 5, 10

Watchdog: Programmable

Digital Input-Output: 8 Channels of DIO

Internal Connectors: N/A

Rear Connectors: DB15 VGA, PS/2 Keyboard/Mouse, 2x RJ45 Ethernet, 1x USB

Included Cables: 1x SATA HDD data cable, 1x SATA HDD power cable, 1x 2-port COM cable, 1x 1-port LPT cable, 1x Y-cable, 1x 2 ports USB 3.0 cable, 1x 4-port USB cable

Operating Temperature: 0 ... 60 °C

Dimensions: 338mm W x 122mm L

Weight: 1.1 kg
