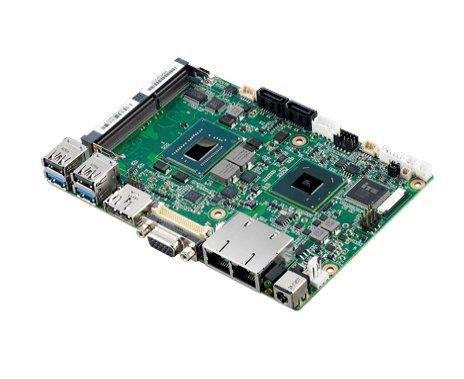

Advantech MIO-5290U-S6A1E Single Board Computers Intel Core i3 ULV MI/O-Compact SBC, DDR3/DDR3L, VGA, HDMI, 48-bit LVDS, 2GbE,2 x Mini PCIe, mSATA, iManager, MIOe

Core: Core i3-3217UE

Chipsets: Intel QM77

Frequency: 1.6 GHz

Dimensions: 146 mm x 102 mm

Form Factor: 3.5 in

Memory Type: DDR3L, DDR3LL

Cache Memory: 4 MB

Installed RAM: 0 GB

Processor Type: Core i3-3217UE

Number of Cores: 2 Core

Processor Brand: Intel

Processor Series: Intel Core i3-3217UE

Power Consumption: 19.38 W

Description/Function: Intel i3-3217UE MIO SBC, VGA, DP/HDMI, 48 bit LVDS, USB 3.0, dual GbE

Maximum RAM Capacity: 8 GB

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
