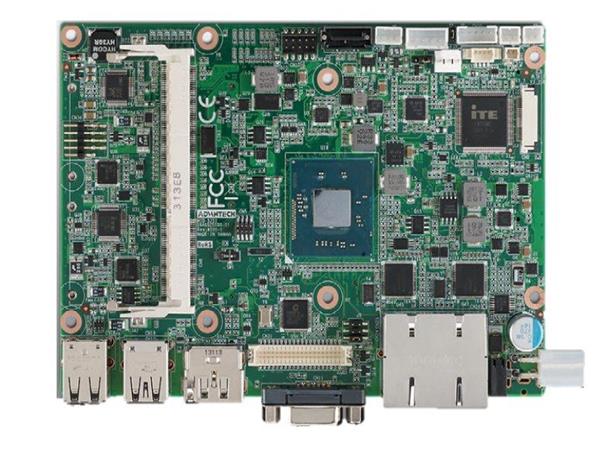

Advantech MIO-5251E-S3A1E Single Board Computers Intel Atom E3825 3.5" MI/O-Compact SBC, DDR3L, VGA, HDMI/DP, 48-bit LVDS/eDP, 2GbE, Mini PCIe, mSATA/SD card, iManager, MIOe

Core: Atom E3825

Frequency: 1.33 GHz

Dimensions: 146 mm x 102 mm

Form Factor: 3.5 in

Memory Type: DDR3L

Cache Memory: 1 MB

Installed RAM: 0 GB

Interface Type: Audio, DP/HDMI, eDP, Ethernet, GPIO, LVDS, MIOe, mPCIe, mSATA, RS-232/422/485, SATA, SMBus/I2C, USB 2.0, USB 3.0, VGA

Processor Type: Atom E3825

Number of Cores: 2 Core

Processor Brand: Intel

Processor Series: Intel Atom E3825

Power Consumption: 4.68 W

Description/Function: Intel Atom E3825 and Celeron J1900, DDR3L-1066/1333 MHz SODIMM up to 8 GB

Maximum RAM Capacity: 8 GB

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
