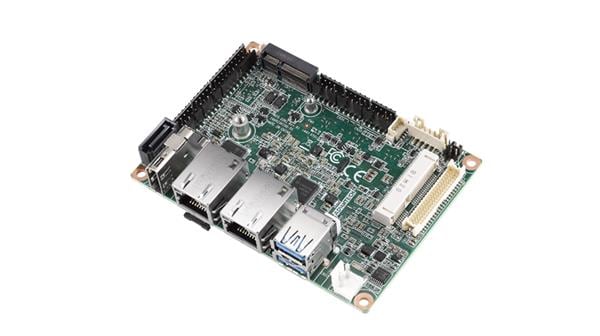

Advantech MIO-2361EW-S7A2 Single Board Computers MIO-2361, A101-2, APL-E3950 F1, RAM 4GB

Core: Atom E3950

Chipsets: SoC

Frequency: 2 GHz

Dimensions: 100 mm x 72 mm

Form Factor: ATX

Memory Size: 32 GB

Memory Type: eMMC

Installed RAM: 4 GB

Interface Type: Audio, DP, Ethernet, GPIO, HDMI, LVDS, M.2, mPCIe, mSATA, RS-232/422/485, SATA, SMBus, USB 2.0, USB 3.0, VGA

Processor Type: Atom E3950

Number of Cores: 4 Core

Processor Brand: Intel

Power Consumption: 26.51 W

Maximum RAM Capacity: 8 GB

On-Board Storage Size: 32 GB

On-Board Storage Type: eMMC

Operating Supply Voltage: 12 V/24 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
