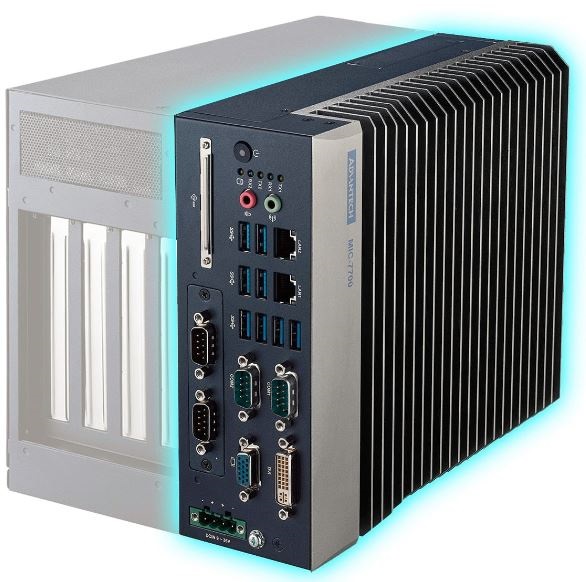

Advantech MIC-7700Q-00A2 Compact Fanless System (Intel® 6th/7th Gen Core™ i CPU)

CPU: Intel® 6th/7th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q170 chipset

Memory: Dual-channel DDR4 2133/2400 MHz (without ECC)

Graphics: 7th Gen. CPU: Intel HD Graphics 630, supports DirectX 12. 6th Gen; CPU: Intel HD Graphics 530/510, supports DirectX 12; 1 x DB15, up to 2048 x 1152 maximum resolution

Ethernet: 2 x RJ45

Storage: 1 x 2.5inch HDD/SSD (up to 2 x 2.5inch SSD by optional kit; 2 x 3.5inch HDD by i-Module), 3 x SATA signal, 3 x SATA power

Serial Ports: 2 x DB9, 2 x RS-232/422/485 support auto flow control; 4 x RS-232 (with expansion cable)

USB: 8 x USB 3.0 and 1 x internal USB 2.0

Audio: 2 (1 x line out and 1 x mic in)

Expansion Mini PCIe: 1 x mini PCIe (via USIM), 1 x mini PCIe/mSATA

Digital I/O: Supports Advantech i-Modules

Watchdog Timer: Programmable 1 ~ 255 sec/min

LED: 2 (1 x Storage and 1 x Power), 4 for COM1 TX/RX and COM2 TX/RX

Power Type: ATX/AT

Input Voltage: 9 ~ 36 VDC

Power Consumption: 32.1W ~116W

OS Support: 7th Gen. CPU: Windows 10, Windows 10 IoT 6th Gen. CPU: Windows 10, Windows 10 IoT, Windows 8 .1 (64 bit), Windows 7 Linux OS

Dimensions (W x H x D): 77 x 192 x 230 mm

Weight: 2.8 kg

Operating Temperature: -10 ~ 50 °C with 0.7 m/s air flow

Storage Temperature: -40 ~ 85 °C

Relative Humidity: 95% @ 40 °C (non-condensing)

Vibration: With SSD: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis . With 2.5ich HDD: 1 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

EMC: CE/FCC Class A, CCC, BSMI

Safety Certifications: UL, CCC, BSMI

Shock: With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration
