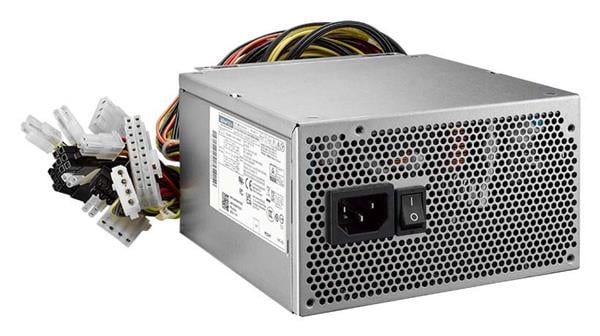

Advantech IPS-X62A850W-A ATX Power Supplies 80+ GOLD PS/2 SPS 850W ATX(Liteon) RoHS

Width: 140 mm

Height: 86 mm

Length: 150 mm

Industry: Industrial

Output Power: 850 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Rack

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 5 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Current-Channel 2: 20 A

Output Current-Channel 3: 70.5 A

Output Current-Channel 4: 300 mA

Output Voltage-Channel 1: 3.3 V

Output Voltage-Channel 2: 5 V

Output Voltage-Channel 3: 12 V

Output Voltage-Channel 4: - 12 V

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
