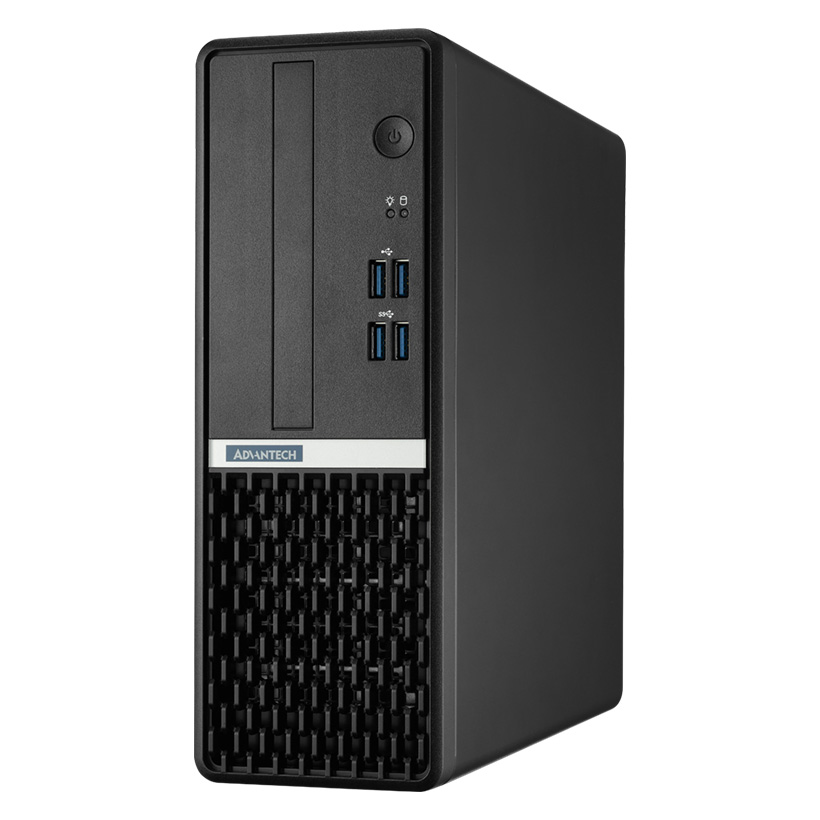

Advantech IPC 320 Compact Tower IPC (H610E)

CPU: Intel® 12th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor

Chipset: H610E

Socket: LGA 1700

BIOS: AMI 256MB SPI Flash

Expansion slot: 1 PCIeX4 (Gen 3)/ 1PCIeX16 (Gen 4)

Memory: Dual Channel (Non-ECC) DDR4 3200 MHz, Max Capacity 64GB

Memory Sockets: 2 x 288-pin DIMM

Graphic Controller: Chipset integrated Intel HD Graphics

SATA: Max. Data Transfer Rate 600 MB/s

Interface: 10/100/1000/2.5G Mbps (2.5G for LAN2 only)

Ethernet Controller: GbE LAN1: Intel I219-V; GbE LAN2: Intel I226-V

Ethernet Connector: 2 x RJ-45

SATA: Max. Data Transfer Rate 600 MB/s, 3 channel

Front Panel I/O and Miscellaneous: 4 USB (2 x USB 3.2 Gen1 and 2 x USB 2.0) / LED Indicators: PWR, HDD

Rear I/O: 1 HDMI up to 4096 x 2160 @ 60Hz / 1 DP 1.2 up to 4096 x 2304 @ 60Hz / 2 Ethernet / 4 USB / 2 Audio

Internal Connector: 1 USB type A, 3 SATA, M.2 M key(link x2), 1 mSATA

Drive Bay: 1 Slim Optical Drive

Dimension (L x W x H): 95 x 270 x 300 mm

Weight: 3.306 kg
