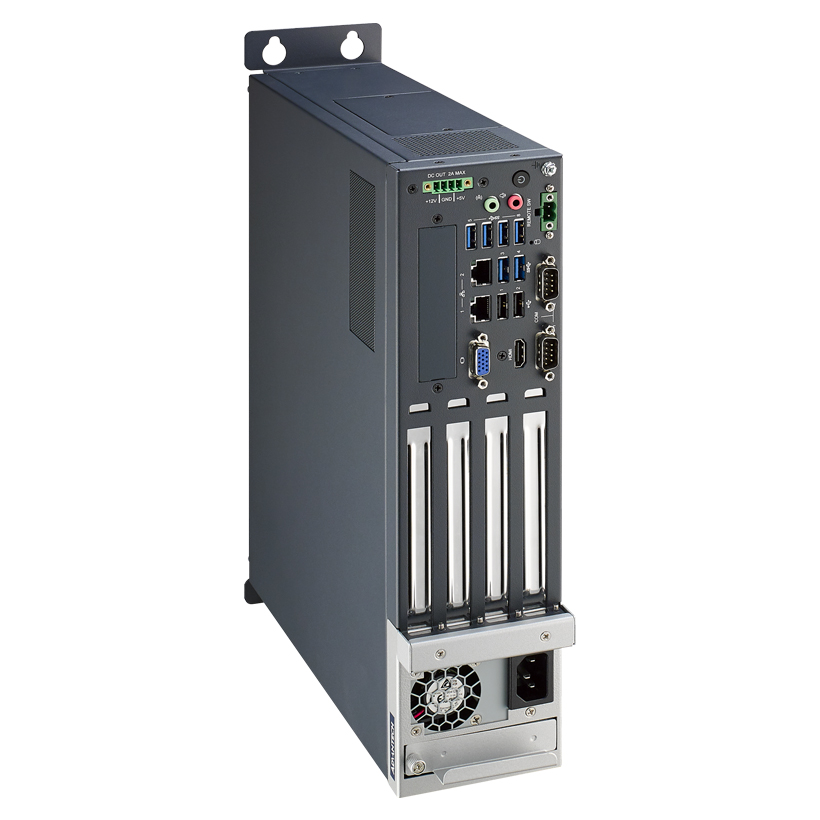

Advantech IPC-242-01A1 Compact IPC (Intel 10th Gen Core i Desktop LGA 1200 CPU)

CPU: Intel 10th Gen Core i Desktop LGA 1200 CPU supported with Q470E/H420E chipset

Memory: Dual-channel DDR4 2666/2933 MHz, 2 x 260 pin DDR4 SODIMM, Max up to 64GB (32GB Per DIMM)

Graphics: 1 x DB15, up to 2048 x 1152 maximum resolution VGA, 1 x HDMI, up to 4096 x 2160 maximum resolution @ 24 MHz, 1 x DP, up to 4096x2304 maximum resolution @ 60 MHz (Internal Pin Header via Cable)

Ethernet: 2 x RJ45

Audio: 2 (1 x line out and 1 x mic in)

Serial Ports: 2 x RS-232/422/485 support auto flow control

USB: 6 (1 x USB 3.0, 4 x USB 2.0, 1 x internal USB 2.0 type A)

LED: 1 x HDD Disk

Add-On-Card Module: 1 x PCIex16, 1 x PCIex4, 2 x PCI

Digital I/O: Support Advantech i-Door

Watchdog Timer: Programmable 1 ~ 255 sec/min

Storage:: 2 x 2.5inch HDD/SSD (Max 15mm Height)

Power Type: AC 250W, ATX

Input Voltage: 100-240V~/3.5A, 47-63Hz

DC Output Voltage: 5V/12V (Max 2A Each)

Dimensions (W x H x D): 333 x 269.2 x 88 mm

Weight: 4.2kg

Operating Temperature: 0 ~ 45 °C

Storage Temperature: -40 ~ 85 °C

Relative Humidity: 95% @ 40 °C (non-condensing)

Vibration: With SSD: 1 Gms @ 5 ~ 500 Hz, random, 1 hr/axis With 2.5\

EMC: CE/FCC Class A, CCC

Safety Certifications: UL, CCC
