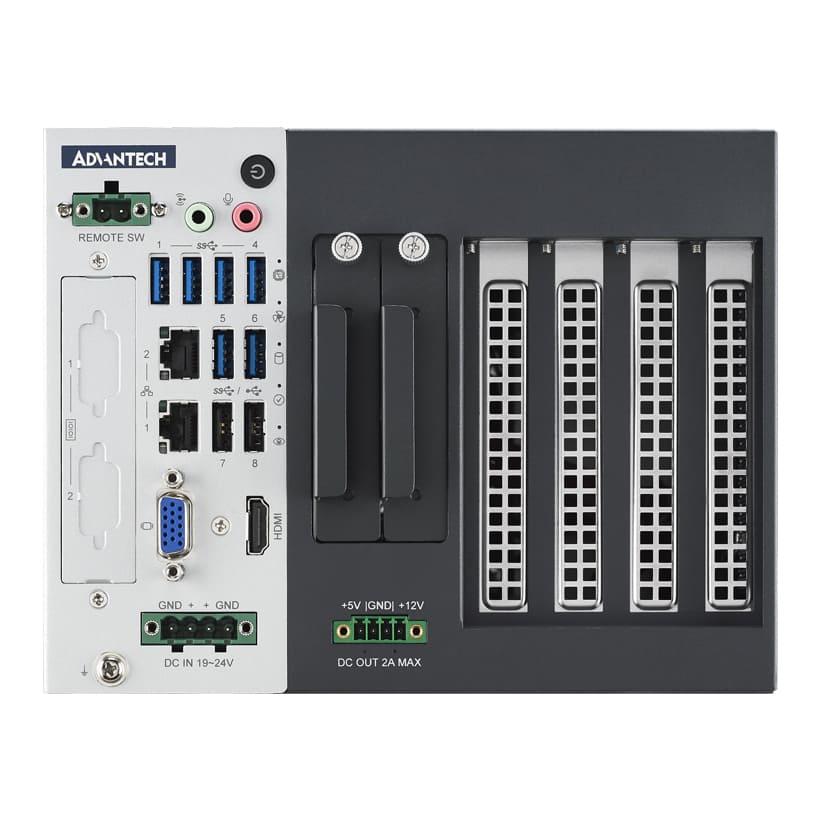

Advantech IPC-240-20A1 Compact IPC

Audio: Mic-in, Line-out

Serial Ports: 2 x RS-232/422/485 support auto flow control

USB: 8

Video Output: HDMI, VGA

Add-On-Card Module: 1 x PCIe x16, 3 x PCIe x4, 0 x PCI

Digital I/O: Support Advantech iDoor

LED Indicator: Power / Disk / CPU Temp. Alarm / System Temp. Alarm / CPU Fan Alarm / Watch Dog

Dimensions (W x H x D): 195 x 230 x 150 mm

Weight: 3.3 kg

Operating Temperature: 0 ~ 45 °C

Storage Temperature: -40 ~ 85 °C

Relative Humidity: 95% @ 40 °C (non-condensing)

Vibration: With SSD: 2 Grms @ 5 ~ 500 Hz, random, 1 hr/axis With HDD: 0.5Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Shock: 10G, IEC-68-2-27, half-sine wave, 11 ms duration
