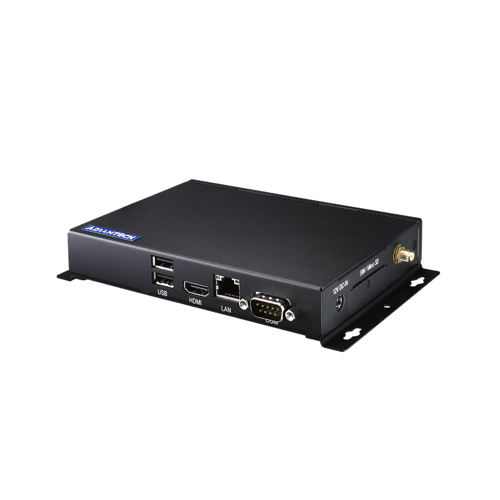

Advantech EPC-R3430 Embedded Box Computers

CPU: NXP ARM® Cortex®-A9 i.MX6 dual 1 GHz

Memory: DDR3 , 1 GB On-board, 4 GB On-board eMMC Flash for OS and 4 MB of NOR Flash for boot code

Graphics: HDMI with 1920 x 1080 resolution

Ethernet: NXP i.MX6 integrated RGMII, 1 10/100/1000 Mbps

Serial Ports: 1 x RS-232/ 422/ 485, 1 x RJ45 for GbE

USB: 2 x USB 2.0 Type A

Watchdog Timer: 1~6553s, power on/off 4s

Operating System: Yocto , Ubuntu , Android

Power Type: DC-Jack

Input Voltage: 12 VDC

Power Consumption: 2 Watts (max. load)

Dimensions (W x H x D): 174 x 108 x 25 mm

Weight: 480 g

Operating Temperature: -20 ~ 60 °C

Relative Humidity: 5 ~ 95% relative humidity, non-condensing

EMC: CE/FCC Class B
