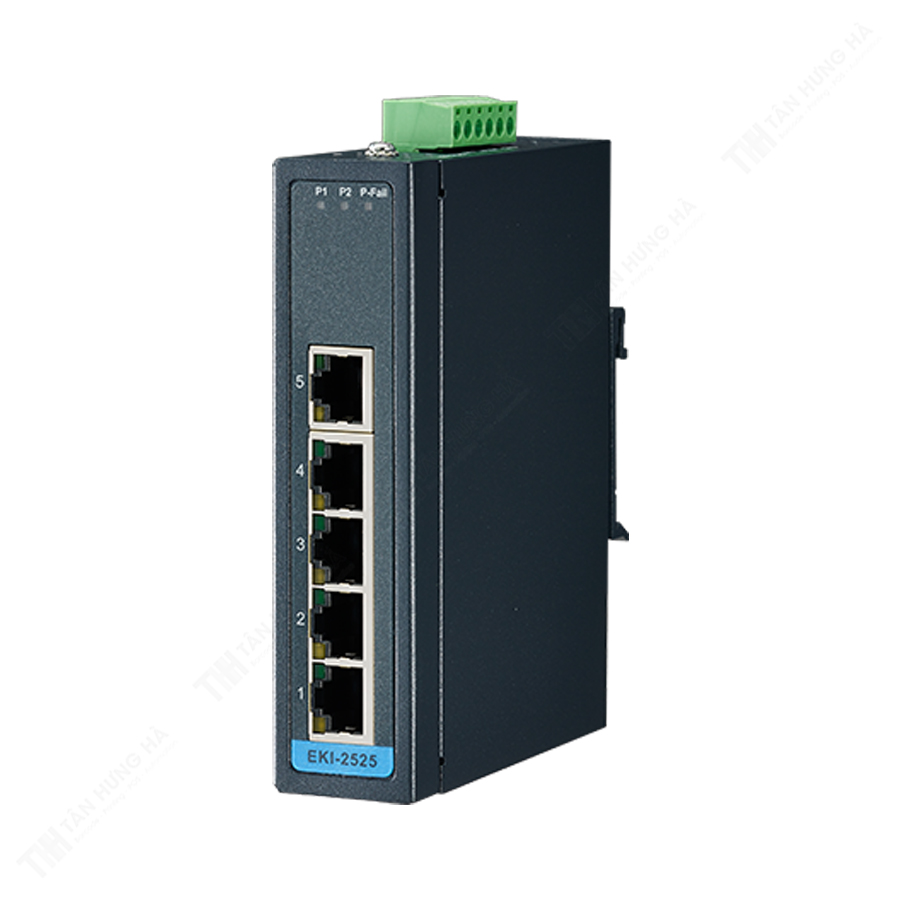

Advantech EKI-2525 Ethernet Switch (10/100 Mbps (Auto-Negotiation))

IEEE Standards: IEEE 802.3, 802.3u, 802.3x

Number of Ethernet Ports: 5 x 10/100Base-T(X) (RJ45)

Transmission Distance: Up to 100 meters

Transmission Speed: 10/100 Mbps (Auto-Negotiation)

Power Supply: 12–48V DC, supports redundant power input

Power Consumption: 2.88W (EKI-2525), 4.71W (EKI-2528)

Fault Output: 1 Relay Output (P-Fail)

Operating Temperature: -40°C to 75°C (EKI-2525I); -10°C to 60°C (EKI-2525)

Humidity: Up to 95% RH (non-condensing)

Dimensions: 30 x 120 x 95 mm

Enclosure: Metal housing, IP30-rated

Mounting: DIN rail or wall mounting

Datasheet
