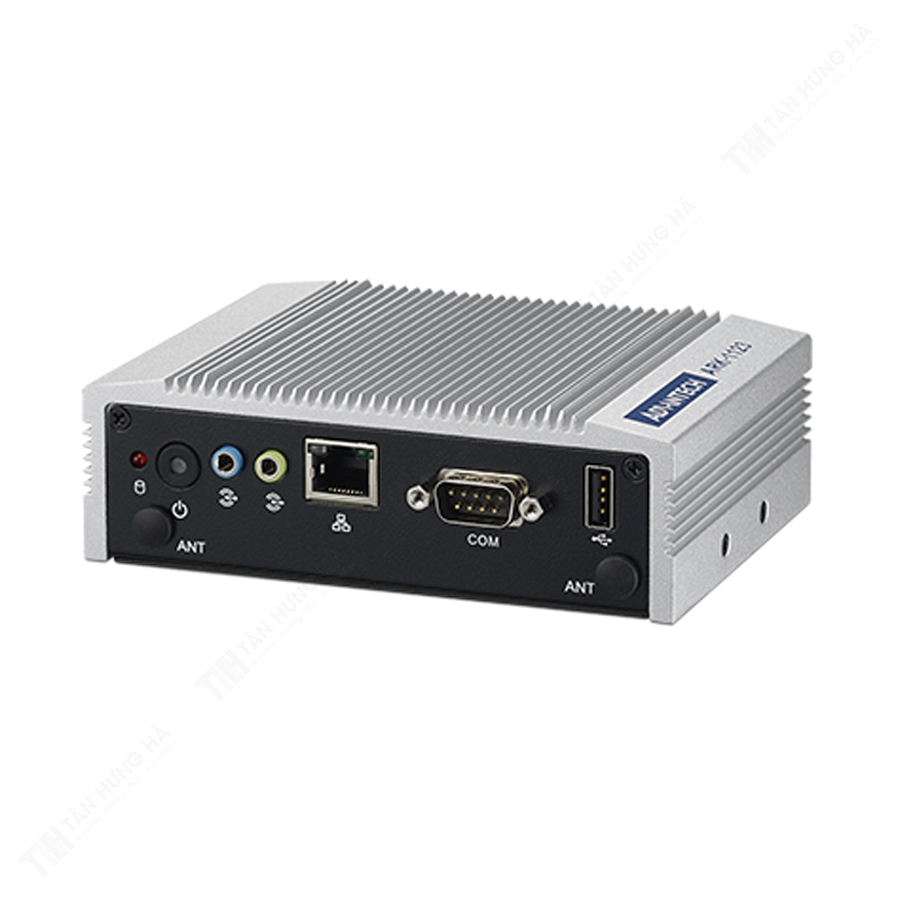

Advantech ARK-1123C Fanless Embedded Box PCs (Intel Atom E3825 Dual Core 1.33 GHz SoC)

Processor: Intel Atom E3825 Dual Core 1.33 GHz SoC

RAM: Up to 8GB DDR3L 1066 MHz (1 x 204-pin SO-DIMM)

Storage: 1 x 2.5 inch SATA HDD/SSD Bay, 1 x Half-size mSATA

Ethernet Connectivity: 2 x GbE (LAN 1, LAN 2)

I/O Ports: 2 x RS-232/422/485 (BIOS selection), 2 x USB 2.0, 1 x USB 3.0

Expansion Slots: 1 x Full-size MiniPCIe (WLAN/WWAN), 1 x Half-size mSATA

Power Supply: 12V DC, typical consumption 5.28W, max 8.16W

Operating Temperature: -30°C to 70°C (with SSD/mSATA)

Dimensions: 133.8 x 43.1 x 94.2 mm

Weight: 0.8 kg

Certifications: CE, FCC Class B, CCC, BSMI, UL, CB, UKCA

Display: 1 x VGA (supports max resolution 1920 x 1200)

Datasheet
