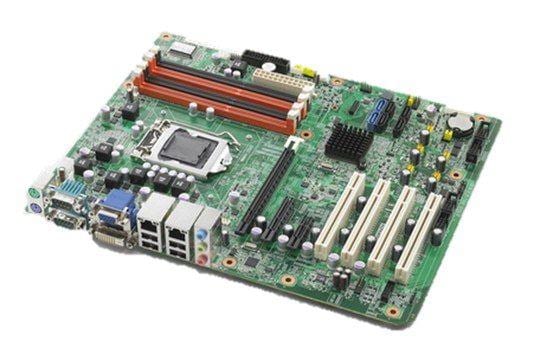

Advantech AIMB-781QVG-00A1E Single Board Computers LGA1155 Intel Core i7/i5/i3/Pentium ATX with B65 chipset, support VGA, Single Gigabit LAN, DDR3, 1x SATAIII, 2COM
ManufacturerAdvantech(View more products from this manufacturer)
ModelAIMB-781QVG-00A1E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Core: Core i3/i5/i7, Pentium
Chipsets: B65
Frequency: 3.4 GHz
Dimensions: 304.8 mm x 244 mm
Form Factor: ATX
Memory Type: DDR3
Cache Memory: 8 MB
Installed RAM: 0 GB
Processor Type: Core i3/i5/i7, Pentium
Number of Cores: 1 Core
Processor Brand: Intel
Processor Series: Intel Core i3/i5/i7/Pentium
Description/Function: ATX with DVI/VGA, dual gigabit LAN, DDR3, SATA III
Maximum RAM Capacity: 32 GB
Battery Backup Switching: No Backup Battery
Operating Supply Voltage: 12 V
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: 0 C
