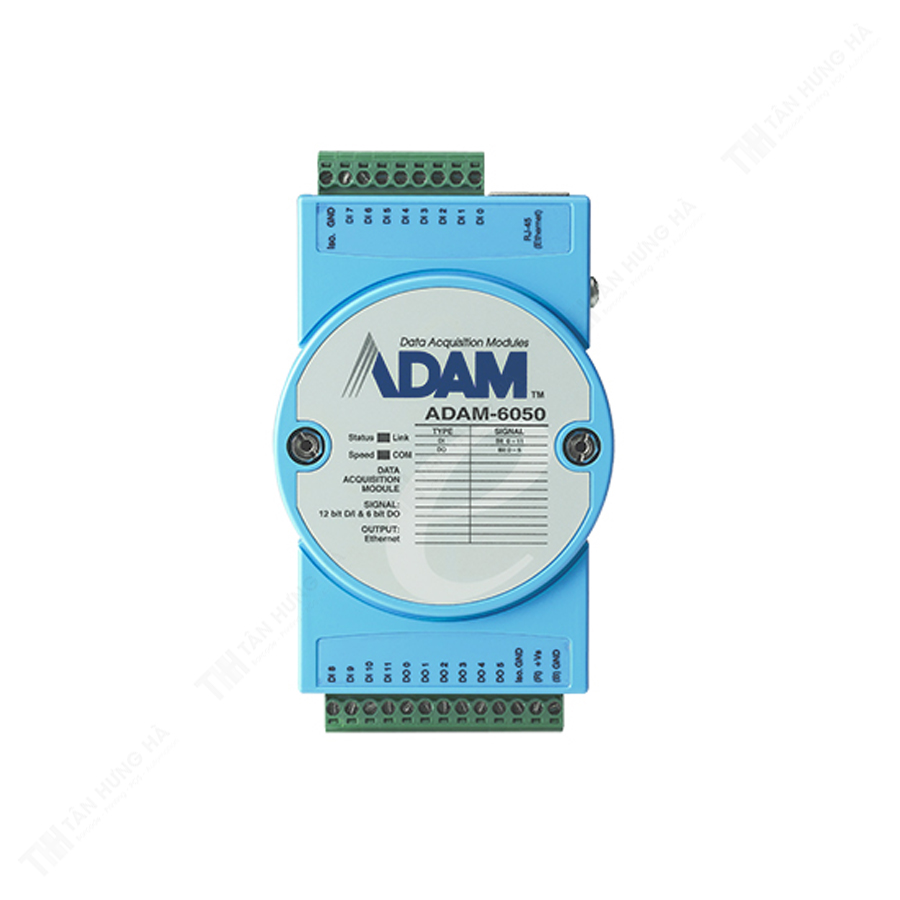

Advantech ADAM-6050 Ethernet I/O Modules (18-channel Digital Input/output, Modbus TCP)

Module Type: 12-channel Digital Input (DI) + 6-channel Digital Output (DO)

Digital Input (DI): 12 DI; supports dry contact and wet contact logic

Digital Output (DO): 6 DO; open collector type with max load of 30 VDC/100 mA

Isolation Voltage: 2.000 VDC between I/O and power, TVS/ESD protection

Power Supply: 10-30 VDC

Power Consumption: 2 W @ 24 VDC

Operating Temperature: -20°C to 70°C

Network Connectivity: Modbus TCP, TCP/IP, UDP, HTTP, DHCP

Humidity: 20% - 95% RH (non-condensing)

Dimensions: 70 x 122 x 27 mm

Datasheet
