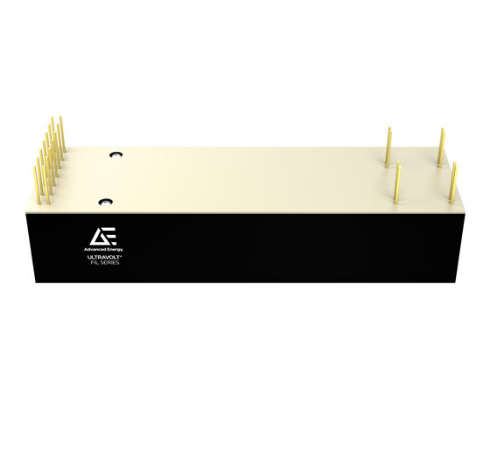

Advanced Energy UltraVolt FIL Standard-Size Power Supply (5VDC,3Amps)

Input
- Operating Range: +24 ±10VDC
- Current: Full Load Output, 900 mA Typical
Output
- Voltage Range: Nominal Input, 0 ~ 5VDC
- DC Current Range: Nominal Input, 0 ~ 3Amps
- Voltage Range: Derated 0 ~ 5.7VDC
- DC Current Range: Derated, 0 ~ 3.3Amps
- Voltage Monitor Scaling: Full Load, 10 VDC
- Current Monitor Scaling: Full Load, 10VDC
Programming & Controls
- Input Impedance: Nominal Input, + Output Models 10 MΩ ~ GND MΩ
- Adjust Resistance: Typical Potentiometer Values, 10 KΩ ~ 100 KΩ (Pot across Vref. and Signal GND, Wiper to Adjust)
- Adjust Voltage: Referenced to signal ground, 0 ~ +10 VDC
- Accuracy: In current control, ±0.1% Amps
- Offset: Voltage control, 0.04% VDC
- Offset: Current control, 0.001% Amps
- Output Voltage: T=+25°C, Initial Value +10.0V ±0.05% VDC
- Enable/Disable: 0 ~ +0.5 Disable, +2.4 to 10 Enable (Default = Enable)
Environmental
- Operating: Full Load, Max Eout, Case Temp. +10 ~ +45°C
- Coefficient: Over the Specified Temperature, ≤15 ppm/°C
- Thermal Shock: Mil-Std 810, Method 503-4, Proc. II, -40 ~ +65°C
- Storage: Non-Operating, Case Temp.: -55 ~ +85°C
- Altitude: All Conditions, Standard Package Sea Level through Vacuum
- Shock: Mil-Std-810, Method 516.5, Proc. IV, 20 Gs
- Vibration: Mil-Std-810, Method 514.5, Fig.514.5C-3, 10 Gs
Construction
- Case: Epoxy-filled DAP box certified to ASTM-D-5948
- Volume: 6.35 in3 (104 cc)
- Weight: 6.75 oz (191 g)
- Tolerance:
Overall ±0.050” (1.27 mm)
Pin to Pin ±0.015” (0.38 mm)
Mounting hole locations ±0.025 ” (0.64 mm)
Options and Accessories:
- Mechanical Mounting: Eared mounting flange permits the standard plastic (DAP) case to be chassis mounted.
- Shielded Enclosures: Both Mu-Metal and anodized aluminium enclosures can be added to provide incremental protection against external RF emissions. Not available with -H option.
- Heat Sinks: Finned aluminium heat sinks can be attached to help dissipate heat in challenging environmental conditions (Adds .4” to height). Not available with -M option.

Datasheet
