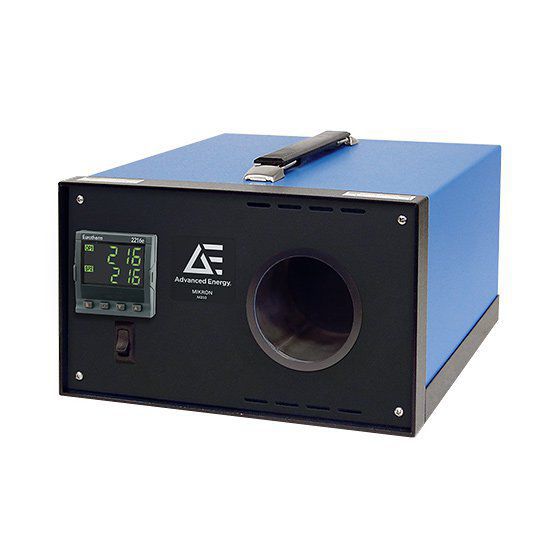

Advanced Energy Mikron M310-HT Calibration Source (5 ~ 450°C)

- Temperature Range: Ambient +5 ~ 450°C (+9 ~ 842°F)
- Temperature Uncertainty: 0.25% of reading ±1°C
- Temperature Resolution: 0.1°C
- Stability: 0.3°C per 8-hour period
- Source Non-Uniformity: Approximately ±1°C @ 250°C or ±2°C @ 400°C
- Heated Cavity Shape: Flat plate
- Exit Port Diameter: 76 mm (3.00 in)
- Emissivity ε: 1.00 effective emissivity @ 8 ~ 14 μm
- Standard Calibration Method: Radiometric at 8 ~ 14 μm
- Temperature Sensor: Precision platinum RTD
- Warm-up Time: < 30 minutes from ambient to 400°C
- Slew Rate to 1°C Stability: Approximately 6 min for a + 50°C change
- Slew Rate to 0.1°C Stability: Approximately 10 min for a +50°C change
Environmental
- Operating Ambient Temp: 0 ~ 44°C (30 ~ 110°F)
- Cooling: Fan cooled, air inlet on rear panel
- Operating Humidity: 90% RH max, non-condensing
- Dimensions (H x W x D): 207.3 mm x 280.4 mm x 266 mm (8.2" x 11" x 10.5")
- Weight: 5.6 kg (12.4 lbs)
- CE Certified: Yes
Communication and Electrical Specifications
- Remote Set Point: Via RS232
- Method of Control: Digital PID controller
- Power Requirements: 230 VAC @ 50 and 60 Hz, RS232, German cable
