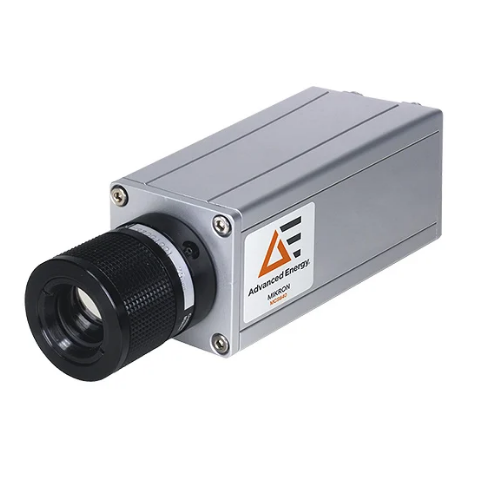

Advanced Energy MCS640/I1 Infrared Camera (600 ~ 3000°C, 850nm)

- Filter: 850nm, clean gas flame furnaces
- Temp. Ranges:
600 ~ 1600°C (1112 ~ 2912°F) (MB 16)
800 ~ 3000°C (1472 ~ 5432°F) (MB 30) in up to 4 sub ranges
- Image Update Rate: 60 Hz frames per second
- Emissivity: 10.0 ~ 100.0% adjustable via interface in steps of 0.1% (for full frame camera picture)
- Uncertainty (Accuracy): ±0.5% of reading in °K
- Detector: 640 x 480 pixels; Silicon
Interface:
- Digital: Gigabit Ethernet (1000 MBit/s)
- Connections: 12-pin power connector, RJ45 Ethernet connector
Electrical:
- Power Supply/Consumption: 24 VDC, 1A
- Power Consumption: 10 W Typical, 13W Max
Environmental:
- Ambient Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -40 ~ 70°C (-40 ~ 158°F)
- Weight: 0.7 kg (1.5 lbs)
- Lens:
Standard lens (10.8° x 8.1°),
Wide angle lens (33.3° x 25.3°), (22.5° x 17°)
Telephoto lens (5.4° x 4.0°), (3.5° x 2.6°)
- Scope of Delivery: 2 m Ethernet cable, 2 m power supply cable, power supply unit (100 ~ 240 VAC, 47 ~ 63 Hz), mounting adapter, PCI/Gigabit Ethernet card (depending on computer), lens cap, manual (on CD), carrying case, and LumaSpec RT Viewer software.
- Ordering information: Please check below PN.
