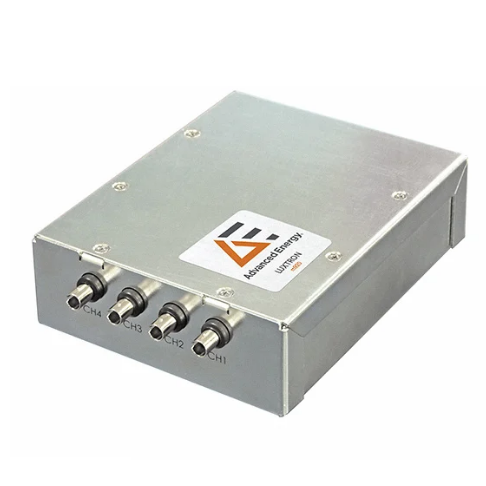

Advanced Energy Luxtron m924 OEM Fiber Optic Temperature Senso (-100 ~ 330°C)

- Temperature Range: -100 ~ 330°C
- Sampling Rate: Up to 50 Hz per channel
- Channels: 4 or up to 64 with RS485 Modbus
- Probe Type: STB and STF
- Accuracy after Calibration:
Single Point Calibration: ±0.5°C, ±50°C of calibration point
Three Point Calibration: ±0.1°C over a 100°C range (probe dependent)
Custom Calibration: ±0.05°C over complete calibration range
- Noise: < 0.1°C, (1-sigma STD @ 1 Hz)
- Measurement Resolution (Digital Output): 0.01°C
- Input Voltage: 5 ~ 24 VDC + 5%
Environmental
- Operating Temperature Range: -40 ~ 85°C
- Storage Temperature Range: -30 ~ 75°C
- Overall Dimensions (Main board and main board with analog outputs): 23.7 (H) x 100.6 (W) x 134.4 (L) mm
- Enclosure Dimensions: 47 (H) x 114 (W) x 144 (L) mm
Communication
- Analog Output: 4 ~ 20 mA or 0 ~ 10 V
- Serial Communication: RS232 and RS485
- Protocol: ASCII (RS232) & Modbus (RS485)
