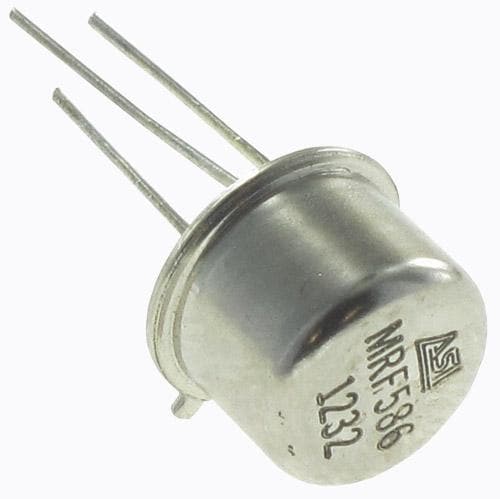

Advanced Semiconductor, Inc. MRF586 RF Bipolar Small Signal RF Transistor
ModelMRF586
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Unit Weight: 453.600 mg
Mounting Style: Through Hole
Transistor Type: Bipolar
Operating Frequency: 500 MHz
Transistor Polarity: NPN
Pd - Power Dissipation: 2.5 W
Emitter- Base Voltage VEBO: 2.5 V
Continuous Collector Current: 200 mA
Maximum Operating Temperature: + 200 C
Minimum Operating Temperature: - 65 C
DC Collector/Base Gain hfe Min: 50
Collector- Emitter Voltage VCEO Max: 17 V
