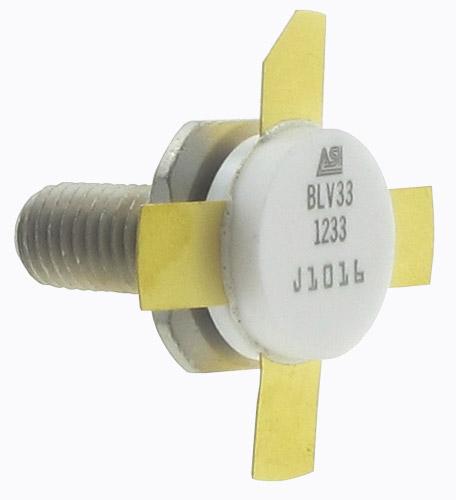

Advanced Semiconductor, Inc. BLV33 RF Bipolar Power RF Transistor
ModelBLV33
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Mounting Style: Through Hole
Transistor Type: Bipolar Power
Operating Frequency: 224 MHz
Transistor Polarity: NPN
Pd - Power Dissipation: 132 W
Emitter- Base Voltage VEBO: 4 V
Continuous Collector Current: 12.5 A
Maximum DC Collector Current: 20 A
Maximum Operating Temperature: + 200 C
Minimum Operating Temperature: - 65 C
DC Collector/Base Gain hfe Min: 15
Collector- Emitter Voltage VCEO Max: 33 V
