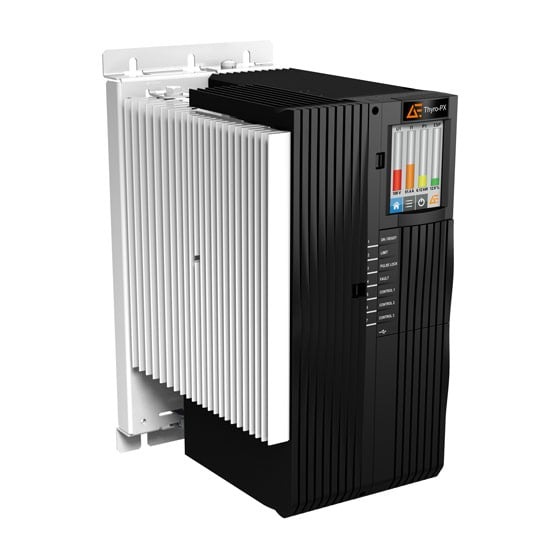

Advanced Energy Thyro-PX 1PX 690-1400 HF Power Controller (1Phase; 1400A; 600V)

Approximate Weight (kg): 35

Product Size (mm): 242 x 787 x 505

Forced Ventilation: Yes

Power Loss: 1900

Unit Rating(kW): 966

Current (A): 1400

Voltage (V): 600

Phase: 1

Control Types: Ueff / U2eff / Ieff / I2eff / P

Frequency (Hz): 47 to 63

Fuses: Integrated semiconductor fuse

Operating Mode: TAKT, VAR, VSC, Soft start, soft down

Rated Currents (A): Up to 5000 A

Rated Voltages (V): Up to 1000 V

Safety Certifications: CE, UL 508 (8 – 350A), Canadian C22.2 No. 14

Communications Interface: USB interface for Thyro-Tool Software; RS232 interface for Thyro-Touch Display
