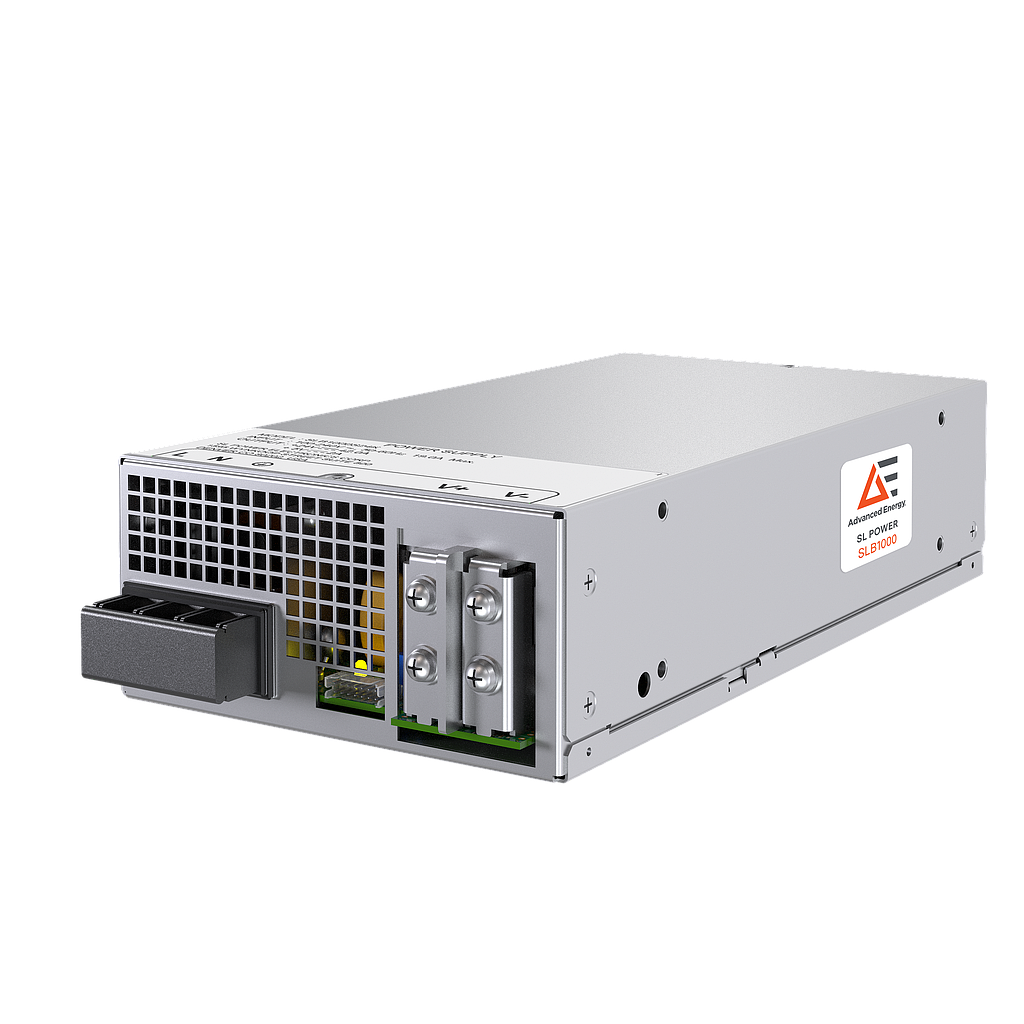

Advanced Energy SLB1000S24K Enclosed PSU for Industrial and Medical (24V, 1000W)

Output Power (W): 1000

Input Voltage (V): 100 to 240 VAC

Operating Temperature (°C): 0 to 70

Length (Inches): 10

Width (Inches): 5.2

Height (Inches): 2.4

Mounting Type: Enclosed

Minimum Output Current (A): 16.6

Maximum Output Current (A): 84

Output Voltage Range (V): 12V to 48V

Minimum Output Power (W): 800

Maximum Output Power (W): 1000

Minimum Input Voltage (V): 100

Maximum Input Voltage (V): 264

Efficiency (%): 90

Min. Voltage (V): 22.8

Max. Voltage (V): 25.2

Current (A): 42

Nominal Voltage (V): 24

Control Type: Analog

Max Output Power (W): 1000

Max Output Voltage (V): 25.2

Number of Outputs: 1

Ripple (ppm): 240

Temperature Coefficient: 50

Output Type: Single
