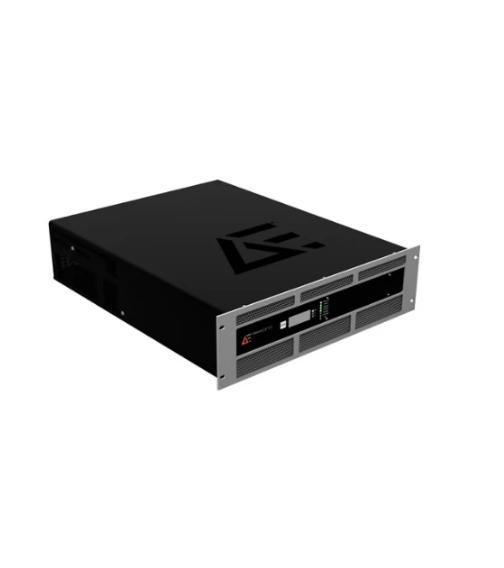

Advanced Energy PNC3 6K 208 AFP EE UHF S7 High-voltage Power Supply

Input Voltage:

200/208, 400, or 480 VAC (all ±10%)

3, 4 wire, 50 to 60 Hz, no neutral required

Efficiency: >87%

Power Factor: >0.90 for loads > 2 kW

Output Voltage: Low-Z and standard-Z options (please refer to individual specification information)

Output Polarities: Floating default with positive and negative capability

Output Ripple Voltage: The component of output ripple voltage related to input line frequency is <2% RMS

Output Power Repeatability: 0.1% from 10% to 100% of rated power (from run to run at a constant set point)

Remote Panel or Host Port: ±1% of full-rated output

User Port: 1% or ±0.2% of full-rated output, whichever is greater

Line Regulation: No accuracy derating for line voltages within the specified input voltage range

Load Regulation: No accuracy derating for impedances within the specified output impedance range

Temperature Coefficient: <0.005%/°C variation in the regulated output parameter over 20° to 40°C (68° to 104°F) ambient temperature range

Product Line (Overall): Specification accuracy is Cpk <1.5

I/O Control

Analog Interface Options:

37-pin isolated (to 500 VRMS), 0 to 10 VDC analog, 0/24 VDC digital

37-pin, 0 to 10 VDC analog, 0/15 VDC digital

37-pin, 0 to 5 VDC analog, 0/15 VDC digital

Serial Communication Options:

RS-232, RS-422, RS-485 (selectable baud rates up to 115.2 k):

• AE Bus protocol

• ASCII protocol (MDX and emulation)

Profibus (selectable baud rates of 1.5 or 12 MB); AE Bus protocol

DeviceNetTM option available
