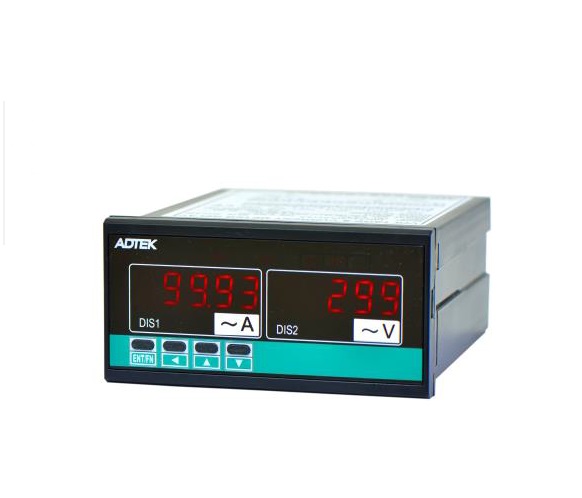

ADTEK VAM VOLT & CURRENT Meter(Dual Input & Display)

DESCRIPTION
VAM Voltage & Current Meter has been designed with high accuracy
dual channels(isolated) measurement, dual display and communication
of 0~600V and 0~10A for DC/AC/TMRS. In compact size(48 x 96mm)
 Build in mathematic function such as Addition / Subtraction /
Multiplication / Division / high or low selector in 2 channels input to
meet various testing equipment inquiry.
They are also build in 4 Relay outputs, 1 Analogue output and 1
RS485(Modbus RTU Mode) interface with versatile functions such as
control, alarm, re-transmission and communication for a wide range of
industrial applications.
FEATURE
● Measuring dual channels (isolated) Voltage 0~100mV/~600V and Current 0~199.99μA/~10A for DC / AC /
TRMS mixable.
● Mathematic function available for Addition / Subtraction / Multiplication / Division / high or low selector in 2
channels input in option.
● 4 relay can be multi-cross programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with
Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
● Analogue multi-cross selection output and RS 485 communication port in option
● CE Approved
APPLICATIONS
● Testing Equipments for Volt/Current Measuring, Alarm, Control and Communication with PC/PLC
 4 Relay functions as like as Hi / Lo / Go with on and off delay time from 0.0(s)~ 9(m):59.9(s)
● DC watt measuring in solar energy to communicate with PC/PLC
 Multiple function for input 1(Adc) and input2(Vdc)
● MCC panel, Machinery, Switch gear... for Voltage or Current Measuring, Alarm and Remote I/O with PC/PLC
 Fantastic 4 Relay functions as like as Hi / Lo / Hi latch / Lo latch / DO(Remote control by PC/PLC).
