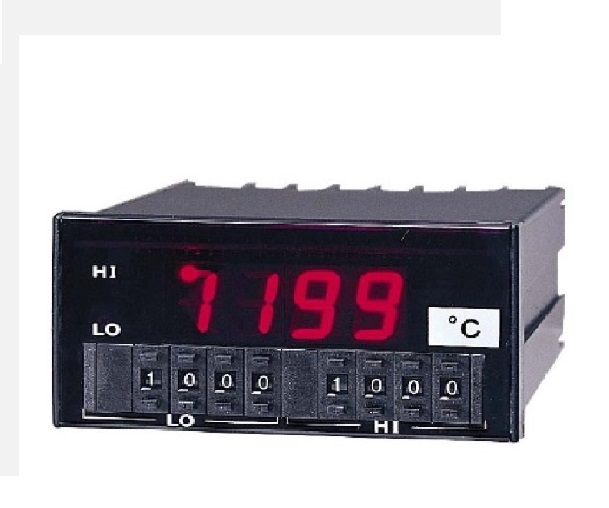

Adtek CST-321S DIGITAL TEMP. SETTING METER (1200°C, Dual Setting H&L)

„„ FEATURE
● Measuring T/C: K, J RTD: Pt100Ω
● Accuracy: T/C: ±0.5% , RTD: ±0.2% ,
● 3 1/2 Digital display: 1999
● Relay contact output
● Easy-to-wire, screw type terminal
● Outside dimensions is 1/8 DIN standard (96x48 mm)
● High stability & low cost
Measuring accuracy: T/C: ±0.5% F.S. ±1 digit
RTD: ±0.2% F.S. ±1 digit
ˍSpan adjustment: ≦10% of F.S.
ˍZero adjustment: ≦2% of F.S.
ˍSampling time: About 3 cycles/sec.
ˍPolarity indication: When input is negative
