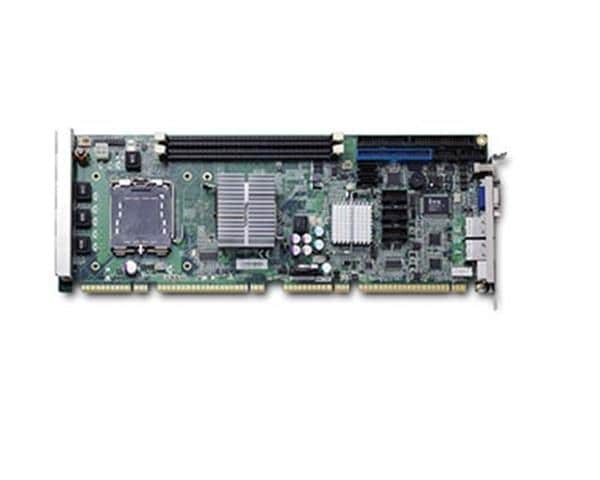

ADLINK Technology NuPRO-E320DV Single Board Computers PICMG 1.3 SBC CORE 2 Duo / LGA775

Core: Celeron, Core 2 Duo/Quad, Pentium

Chipsets: Q45, ICH10

Frequency: 1.8 GHz to 3 GHz

Dimensions: 338 mm x 126 mm

Form Factor: PICMG 1.3

Memory Type: DDR3

Cache Memory: 6 MB

Installed RAM: 0 GB

Interface Type: Audio, Ethernet, IDE, Parallel, PS/2, RS-232/422/485, SATA, USB 2.0, VGA

Processor Type: Celeron, Core 2 Duo/Quad, Pentium

Processor Brand: Intel

Processor Series: Intel Core 2 Duo/Quad, Intel Pentium, Intel Celeron

Power Consumption: 95 W

Description/Function: Full size PICMG 1.3 LGA775 Intel Core 2 Quad/Duo SHB with dual channel DDR3, TPM, dual GbE, SATA II

Maximum RAM Capacity: 4 GB

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
