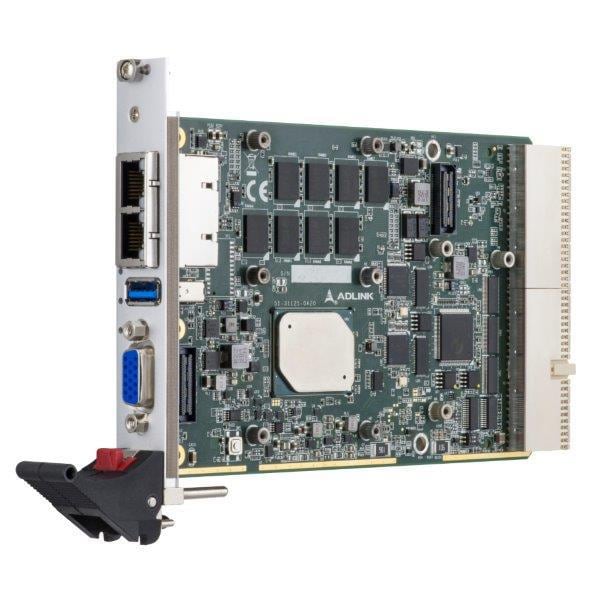

ADLINK Technology cPCI-3630D/E3950/M4G/CFA Single Board Computers cPCI-3630D/E3950/M4G/CFA2-slot (8HP) 3U CompactPCI blade with Intel Atom x7-E3950 processor,4GB DDR3L-1600 soldered memory,supportt VGA,USB 3.0,2x GbE,COM(RS-232/422/485),2x USB 2.0, PS/2 KB/MS,line-in/out,SATA and CFAST connect
ModelcPCI-3630D/E3950/M4G/CFA
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Core: Atom x7-E3950
Code Name: Apollo Lake I
Frequency: 1.6 GHz
Dimensions: 160 mm x 100 mm
Memory Type: DDR3L-1600
Interface Type: Audio, Ethernet, Serial, USB
Processor Type: Atom x7-E3950
Number of Cores: 4 Core
Processor Brand: Intel
Processor Series: x7-E3950
Power Consumption: 23.75 W
Maximum RAM Capacity: 8 GB
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
