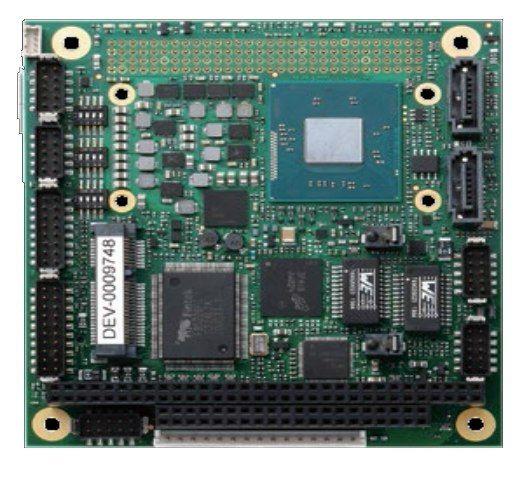

ADLINK Technology CM2-BT2-E3825 Single Board Computers CORE MODULE INTEL ATOM E3825 BAY TRAIL

Core: Atom E3825

Frequency: 1.33 GHz

Dimensions: 96 mm x 90 mm

Form Factor: PC/104

Memory Type: DDR3L-1333

Unit Weight: 249.480 g

Cache Memory: 24 kB, 32 kB

Installed RAM: 0 GB

Interface Type: Audio, COM, GPIO, LVDS, Micro SD, mPCIe, SATA, USB 2.0, VGA

Processor Type: Atom E3825

Processor Brand: Intel

Processor Series: E3825

Description/Function: PC/104-Plus, Atom E3825, 1.33 GHz, dual core, includes heat spreader, standard operating temperature

Maximum RAM Capacity: 4 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
