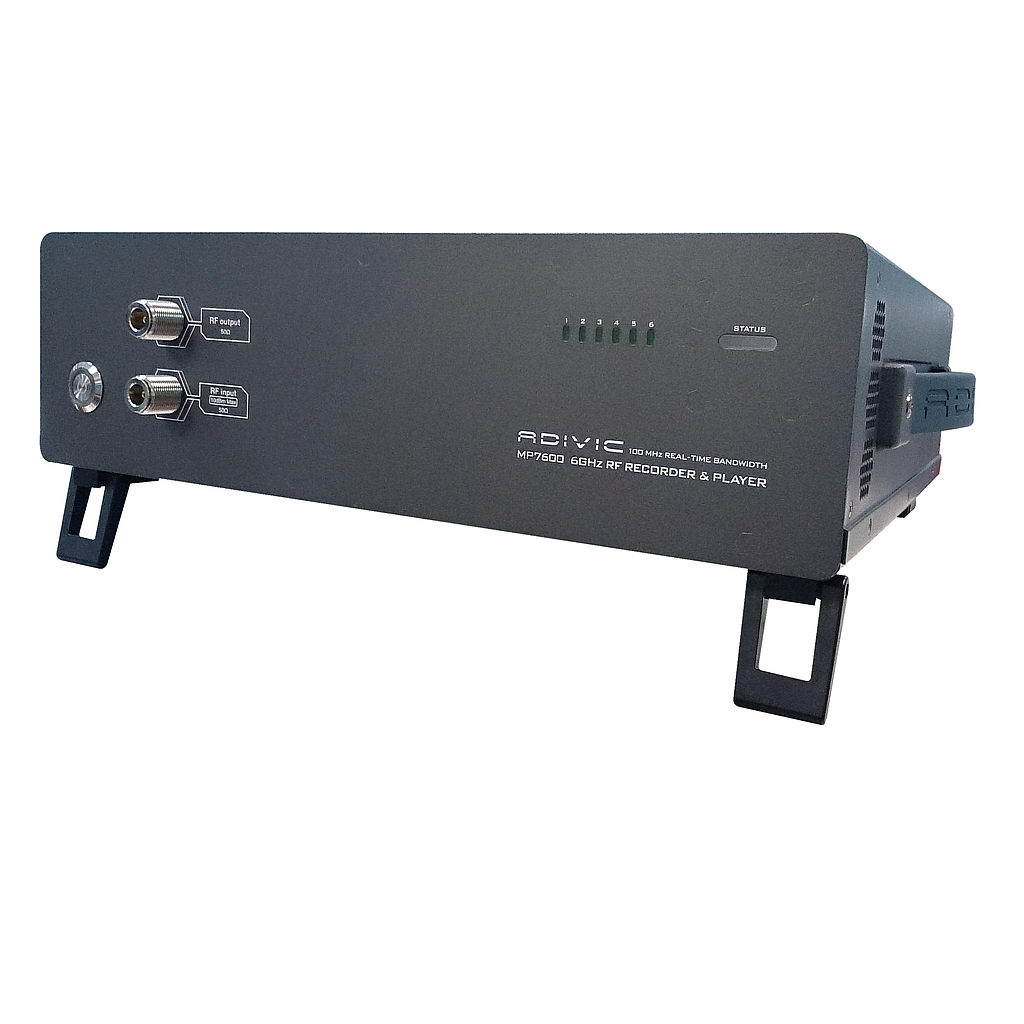

Adivic MP7600 RF Recorder/Player (300 KHz ~ 6.0 GHz)

Key Features：

•Ultra-high frequency coverage from 300 KHz to 6.0 GHz

•Pre-trigger function to keep your valuable record data even before the trigger event

•100MHz super wide bandwidth capable of simultaneously record/playback of 16 NTSC TV channels

•MP7600 can have a maximum of 7 sets, synchronized in parallel, RF record/playback

•16-bit high resolution of the ADC/DAC

•Smart AGC to extend usable dynamic range to greater than 150dB

•High linearity to accommodate strong & weak signals

•Additional traces for maximum/minimum holds

•20+ markers for easy signal identification

•Baseband IQ data formats compatible to MATLAB

•Software utility support including I/Q data extractor and file segmentation

•2.5 inches SSD x4 internal drive bays (4 X 480 GB by default, 1 TB x4 upgradable

•1PPS, IRIG-B support (Optional)

Brochure

Test your product with the Real-World signals:

• Eventually your Receiver has to receive the real-world signal, yet,…

• None of the existing signal generators can 100% emulate the real world signals,

• Only the RF recorder/player can bring back repeatable real world RF signals to your lab

When will you need a RF recorder ?

• Your DTV/DAB/GPS receiver chip can’t decode properly in certain location

• Your receiver works fine in some locations, however doesn’t in some other locations.

• Virtual signal source, can be any signal generator
