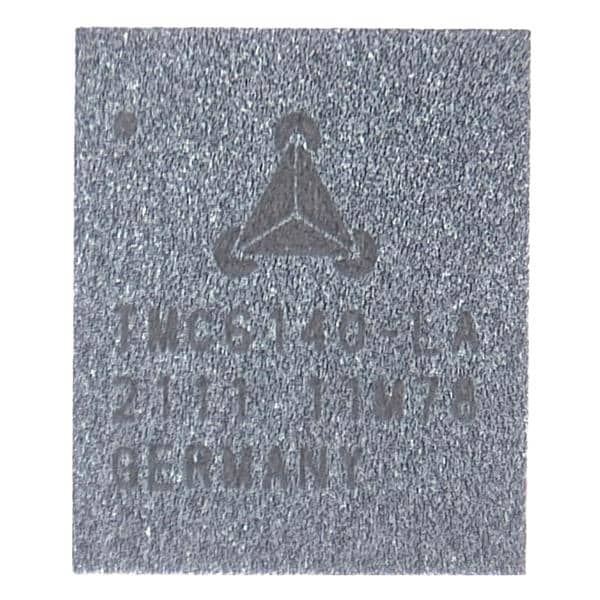

ADI Trinamic TMC6140-LA 3-Phase / Three Phase 3-Phase MOSFET gate driver for PMSM serv

Mounting Style: SMD/SMT

Output Current: 1.25 A

Output Voltage: 10.5 V

Number of Drivers: 6 Driver

Number of Outputs: 3 Output

Moisture Sensitive: Yes

Input Voltage - Max: 3.6 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 30 V

Supply Voltage - Min: 5 V

Propagation Delay - Max: 15 ns

Operating Supply Current: 4 mA

Maximum Turn-On Delay Time: 150 ns

Maximum Turn-Off Delay Time: 120 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 2 Ohms
