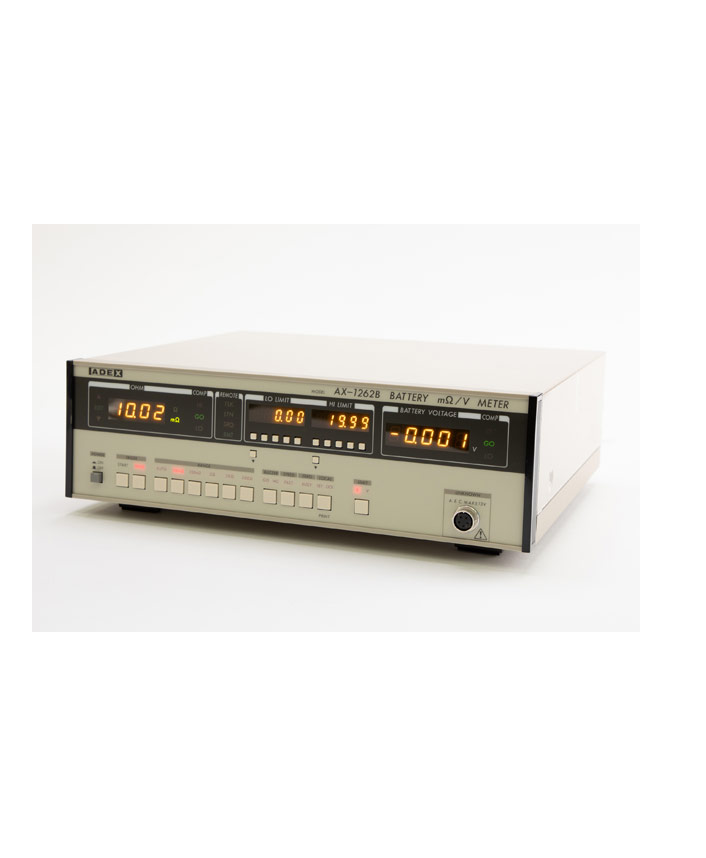

ADEX AX-1262B Battery MILLI OHM/V Meter (0.00mΩ ~ 199.9Ω)

Measuring range and Accuracy (at 23℃±5℃)

Voltage measuring range/ Resolution/ Accuracy

0.000V～12.999V/ 1mV/ within ±0.03％rdg±2digit

Range/ Measuring range/ Resolution/ Measuring current

20mΩ/ 0.00mΩ～19.99mΩ/ 10μΩ/ 100mA

200mΩ/ 0.0mΩ～199.9mΩ/ 100μΩ/ 10mA

2Ω/ 0.000Ω～ 1.999Ω/ 1mΩ/ 1mA

20Ω/ 0.00Ω～ 19.99Ω/ 10mΩ/ 100μA

200Ω/ 0.0Ω～ 199.9Ω/ 100mΩ/ 10μA

Accuracy: within

± (0.2％rdg＋50μΩ)

±2digit [Slow]

±3digit [Fast]

Test signal: 1kHz±0.1% sine wave/1V r.m.s. (max.)

Measuring method:4-terminal measuring method [available to contact check]

Sampling time:

Free running mode : 5 or 15 times/sec.

Remote start mode : about 24msec./110msec.

Measuring response time: Within 20msec. approx.

Measuring terminals max. voltage:DC±25V(In case of A.E.C. : S"OFF")/DC±13V(In case of A.E.C. : S"ON")

Comparator set range: Resistance：3½ Digit (1999) both high and low limit Voltage：4½ Digit (±12.999) both high and low limit

Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer

Control signal:

Remote start signal

Remote hold signal

comparison output [R-LO/R-HI/V-LO/V-HI/GO]：Open-collector output

Contact signal error [CE]：Open-collector output

end of comparison output [EOC]：Open-collector output

Analog output:

Resistance value：Full scale DC10V±0.3％±30mV

Battery voltage：0～±12V±0.1％±10mV

Operation condition[Temp.]: ＋5℃～＋40℃[Humidity] less than 85％

Power supply:AC100V～240V selectable, 50/60Hz, about 50VA

Outer dimension: about 333(W)×99(H)×300(D)mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 3.5kg
