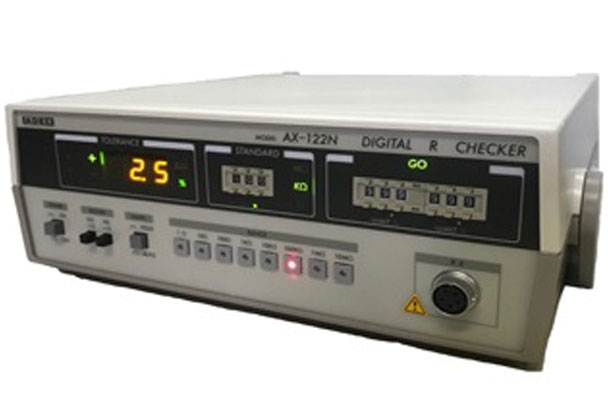

ADEX AX-122N Digital resistance percentage checker (0.1Ω ~ 9.99MΩ)

RangeMeasuring rangeMeasuring current Accuracy

1Ω 0.1Ω～ 0.999Ω DC100mA within ±0.3％ ±1digit

10Ω 1Ω～ 9.99Ω DC100mA within ±0.2％ ±1digit

100Ω 10Ω～ 99.9Ω DC10mA within ±0.2％ ±1digit

1kΩ 100Ω～ 999Ω DC5mA within ±0.2％ ±1digit

10kΩ1kΩ～ 9.99kΩ DC500μA within ±0.2％ ±1digit

100kΩ10kΩ～ 99.9kΩ DC50μA within ±0.2％ ±1digit

1MΩ 100kΩ～ 999kΩ DC5μA within ±0.2％ ±1digit

10MΩ1MΩ～9.99MΩ DC0.5μA within ±0.3％ ±1digit

Open-circuit voltage of measuring terminal:less than 15V

Measuring method:4-terminal measurement

Sampling time: [Auto] 12.5 times/sec. (Power 50Hz), 15 times/sec. (Power 60Hz)

[Remote start mode] 80msec. (Power 50Hz), 66.7msec. (Power 60Hz)

Measured value display range (deviation):－99.9％～＋99.9％

Comparator set range:upper limit：＋0.0％～＋99.9％, lower limit：－0.0％～－99.9％

Indication of comparator's comparison result:LED indication -NG/GO/+NG and buzzer

I/O signals:

Remote start input

Comparison output (－NG/GO/＋NG)：open collector：max.80V, 100mA

Completion of the measurement signal (EOC)：open collector max.80V, 100mA

Measured value in BCD parallel (fan out 2)

Standard value in BCD parallel (fan out 2)

Power supply:AC100V～240V selectable, 50/60Hz, about 15VA

Outer dimension:about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight:about 2.6kg
