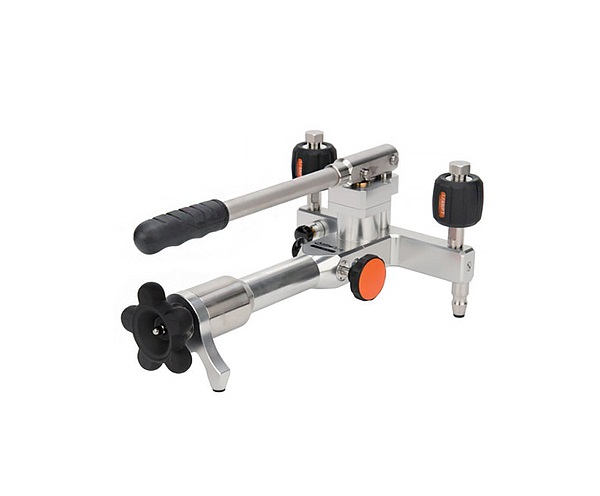

Additel 916 Pneumatic Pressure Test Pump (40 bar)

Media: Air.

Generated Pressure Range: 95% vacuum to 600 psi (40 bar) positive pressure.

Adjustment Resolution: 10 Pa (0.1 mbar)

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Piston volume: 21 ml

Connection

Hand-tight connectors for both test gauge and reference

gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions

Height: 5.5" (140 mm)

Base: 12.4" (315 mm) x 7.8" (198 mm)

Weight: 5.9 lb (2.7 kg).

Accessories included
O-ring: 20 pcs
Manual: 1 pc
Carrying case (916-X-SET models only)
