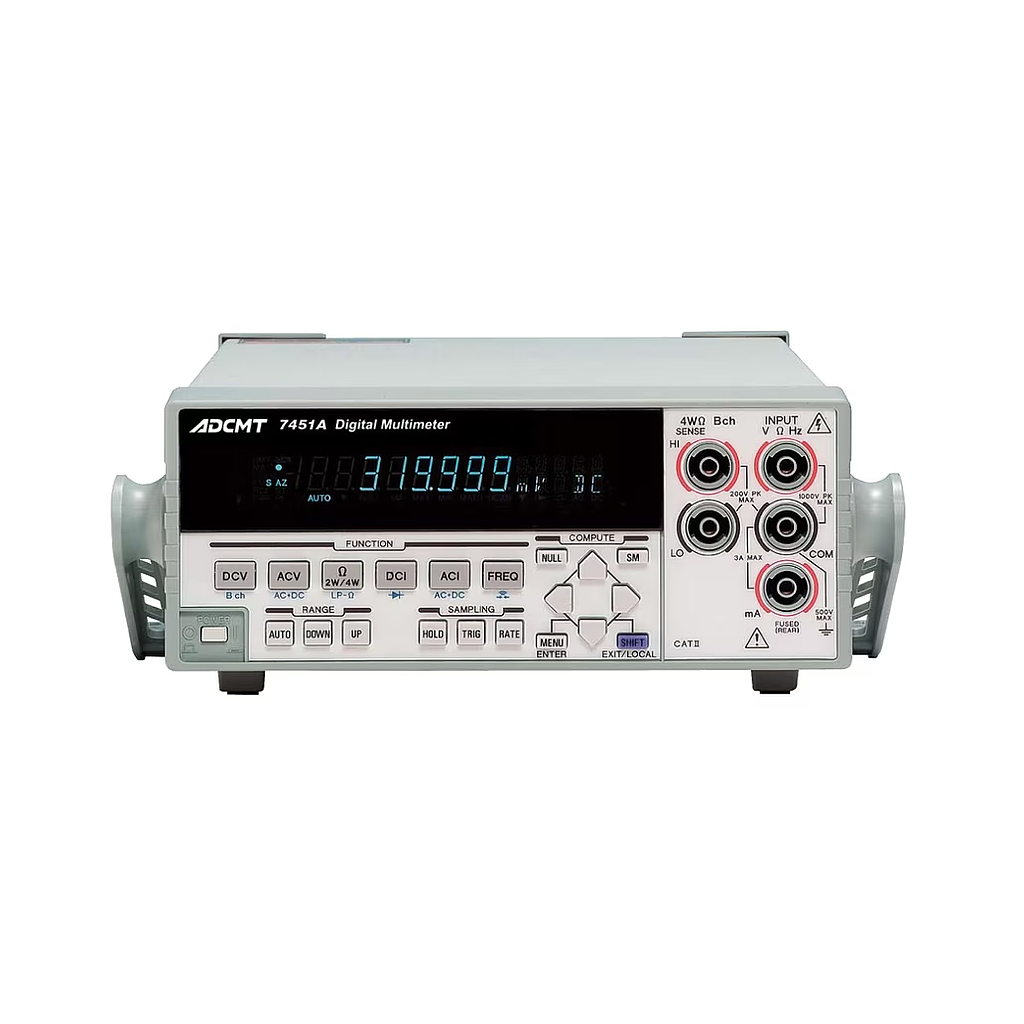

ADCMT 7451A Digital Multimeter (5½ digits; 1μV~1000V; 10nA~3A; True RMS)

Specifications:

Maximum display: 319 999

Measurement speed (readings/s): 5,000 max

Variable integration: ✓

DC voltage measurement: 1 μV to 1000 V

Accuracy (typical value): 0.01 %/year

DC current measurement: 10 nA to 3 A

Resistance measurement: 100 μΩ to 300 MΩ

AC voltage measurement (True RMS): 1 μV to 700 V

AC voltage frequency range: 20 Hz to 300 kHz

AC current measurement (True RMS): 10 nA to 3 A

Calculation function: ✓

Temperature measurement: N/A

Data memory: 10,000

Interface: USB, GPIB

Supplied Accessories:

Power cable (JIS 2 m): 1

Input cable (test probe 1 m): 1

Alligator clip adapter (for CC010001): 1

Power fuse (100/120 V); Power fuse (220/240 V): 1 *Either one is included.

Overcurrent protection fuse: 1

Manual

Brochure
