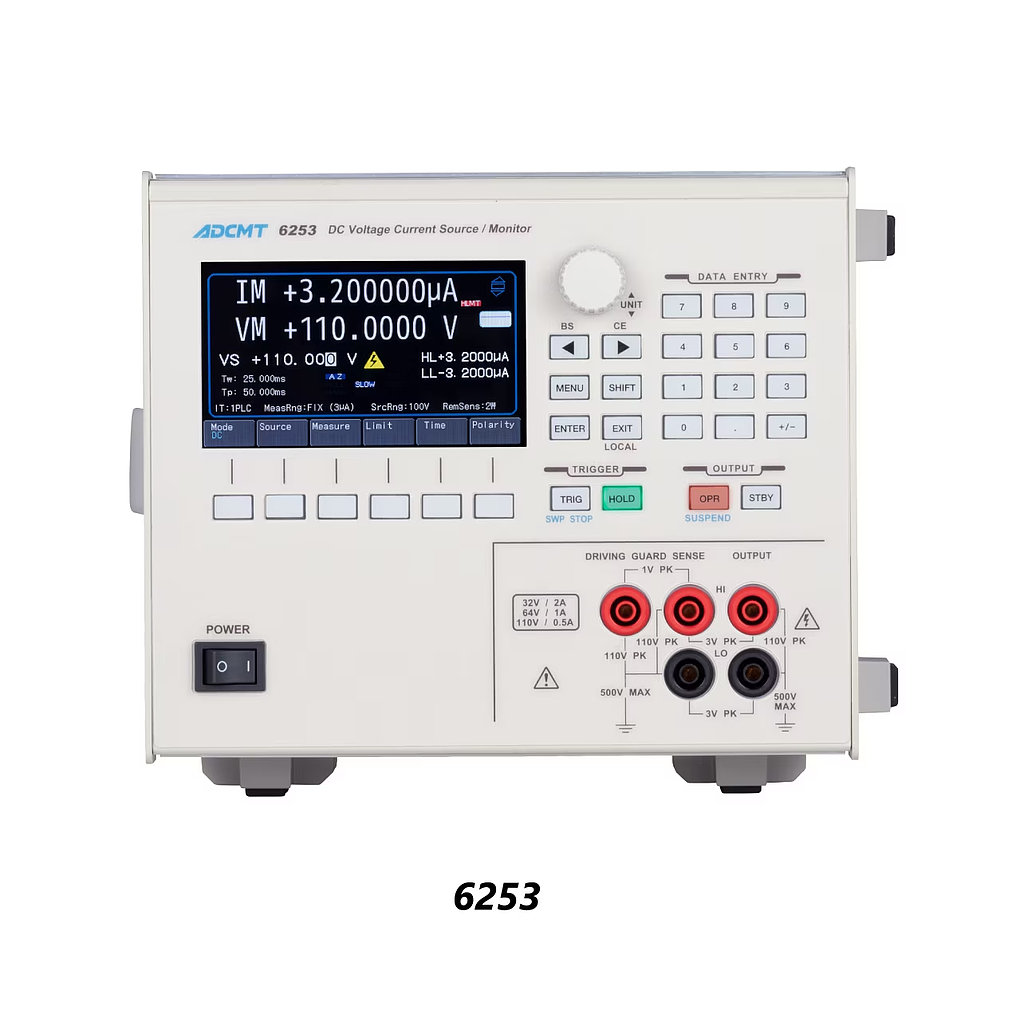

ADCMT 6253 DC Voltage Current Source Monitor (±110 V/0.5 A ; ±64V/1A)

Specifications

Number of digits for generation: 5½

Output method: Bipolar

Maximum output voltage: ±110 V/0.5 A ; ±64 V/1 A

Minimum voltage resolution: 5 μV

Maximum output current: ±2 A/32 V

Minimum current resolution: 50 pA

Number of digits for measurement: 6½桁

Accuracy (typical range): 0.0002

Minimum measurement voltage resolution: 100 nV

Minimum measurement current resolution: 1 pA

Maximum measurement resistance / Minimum resolution: 550 GΩ/0.05 μΩ

Pulse application / Measurement: Available

Minimum pulse width: 25 μs

Interface: USB, GPIB, LAN (option), RS232 (option)

Supplied Accessories:

Power cable (JIS 2 m): 1

Input and output cable (safety plug) 6253 only: 1

Input and output cable (safety plug, large current) 6254 only: 1

Banana tip adapter (for A01044): 1

Alligator clip adapter (for A01044) 6253 only: 1

Output connector (plug): 1

Output connector (plug) cover : 1

Cable tie: 1
